برد توسعه M5STACK مخصوص پروژه های IOT به همراه نمایشگر و هسته ESP32

معرفی

پلتفرم اوپن سورس M5Stack یک رایانه کوچک با تمامی امکانات لازم برای راه اندازی و انجام پروژه های خانه هوشمند می باشد. طراحی برد به گونه ای است که می توانید به راحتی در هسته مرکزی دستگاه های خود استفاده کرده و از طریق پورت های خروجی متنوع آن، انواع تجهیزات را کنترل نمایید.
می توانید از طریق آردوینو، میکروپایتون و یا محیط مخصوص خود این دستگاه، اقدام به پروگرام نمودن آن بکنید.

Introduction

M5Stack BASIC Kit, like its namesake, is a starter kit among the M5Stack development kit series. It’s a modular, stackable, scalable, and portable device which is powered with an ESP-32 core, which makes it open source, low cost, full-function, and easy for developers to handle new product development on all stages including circuit design, PCB design, software, mold design and production. This Basic kit provides a friendly price and full-featured resources which makes it a good starter kit for you to explore IoT.
If you want to explore the fastest way of IoT prototyping, M5Stack development board is the perfect solution. Not like others, M5Stack development board is highly efficient, covered with industrial grade case and ESP32-based development board. It integrates with Wi-Fi modules and contains a dual-core and 16MB of SPI Flash . Together with 30+ M5Stack stackable modules , 40+ extendable units and different levels of program language, you can create and verify your IoT product in a very short time.
Supportive development platforms and programming languages: Arduino, Blockly language with UIFlow , Micropython. Regardless of what level programming skill you have, M5Stack would guide you in every step of the way to realize your idea as well as to the final productlization. e If you ever played with ESP8266, you would realize that ESP32 is a perfect upgrade out of ESP8266. In comparison, ESP32 has more GPIOs, more analog inputs and two analog outputs, multiple extra peripherals( like a spare UART ). Official developing platform ESP-IDF has transplanted with FreeRTOS. With dual-core and real time OS you can get more organized code and much high speed processor.

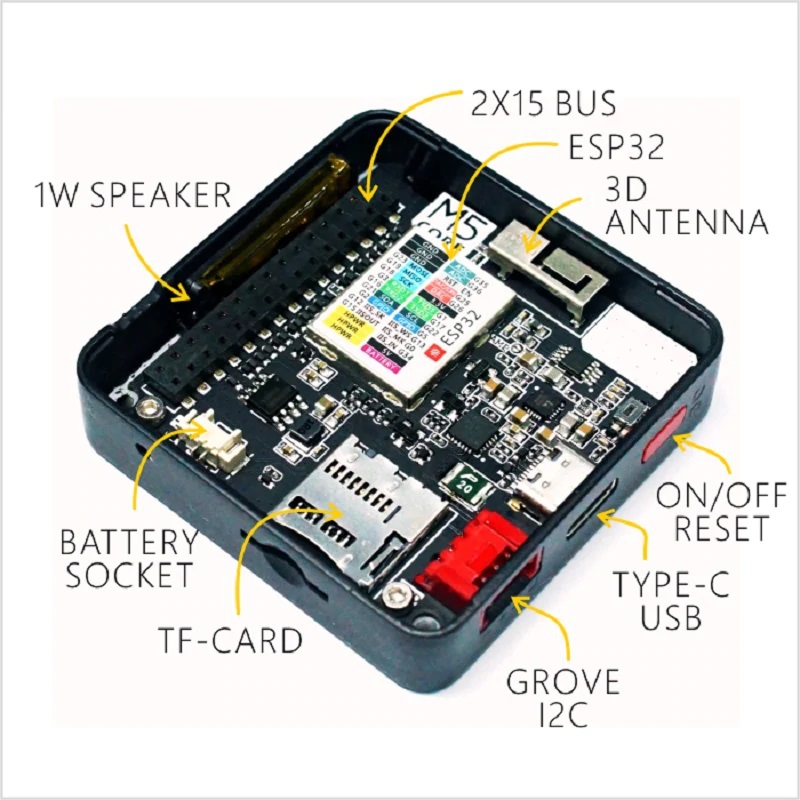

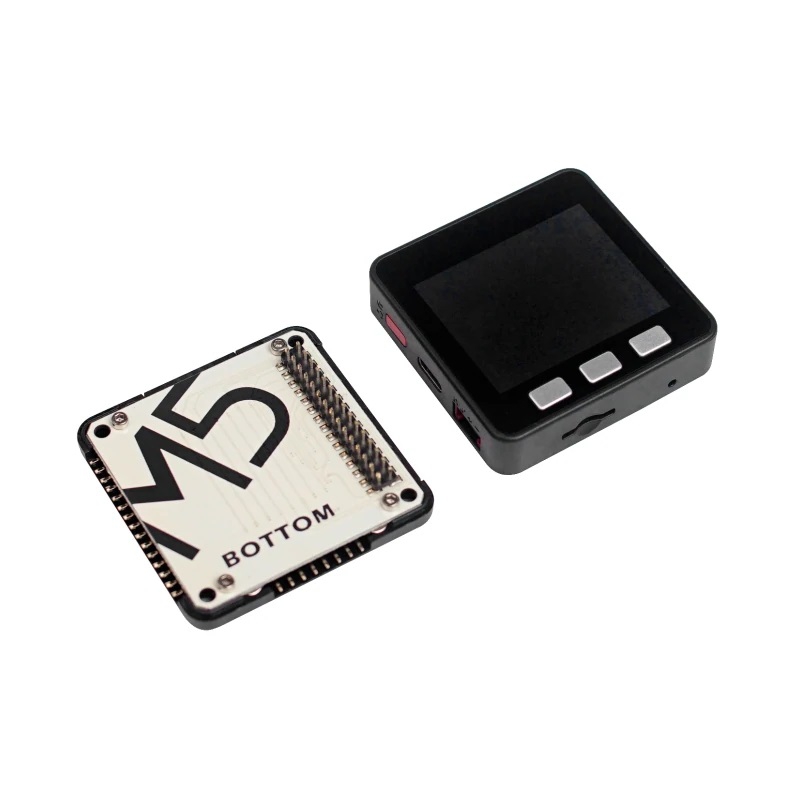

M5Stack Basic is consist with two separable parts. The upside part has all kinds of processors, chips and some other slot components. The bottom part has a lithium battery, M-BUS socket and extendable pins on both sides.

BASIC is a cost-effective entry-level IoT main controller. It adopts Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with main frequency up to 240MHz. Built-in 16M FLASH memory, integrated 2.0-inch full-color HD IPS display panel, speaker, TFCard slot and other peripherals. The full-coverage housing ensures circuit stability even in complex industrial applications. Internal provides a variety interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. Ideal for a variety of product prototyping, industrial control, intelligent building application.

High productization:
Exquisite designs, Prototyping right into products
Product-grade full-coverage cover for more stable circuit operation
Low Code Development:
Support UIFlow graphical programming platform, scripting-free, cloud push
Fully compatible with mainstream development platforms such as Arduino and ESP32-IDF
Support FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.
High Integration:

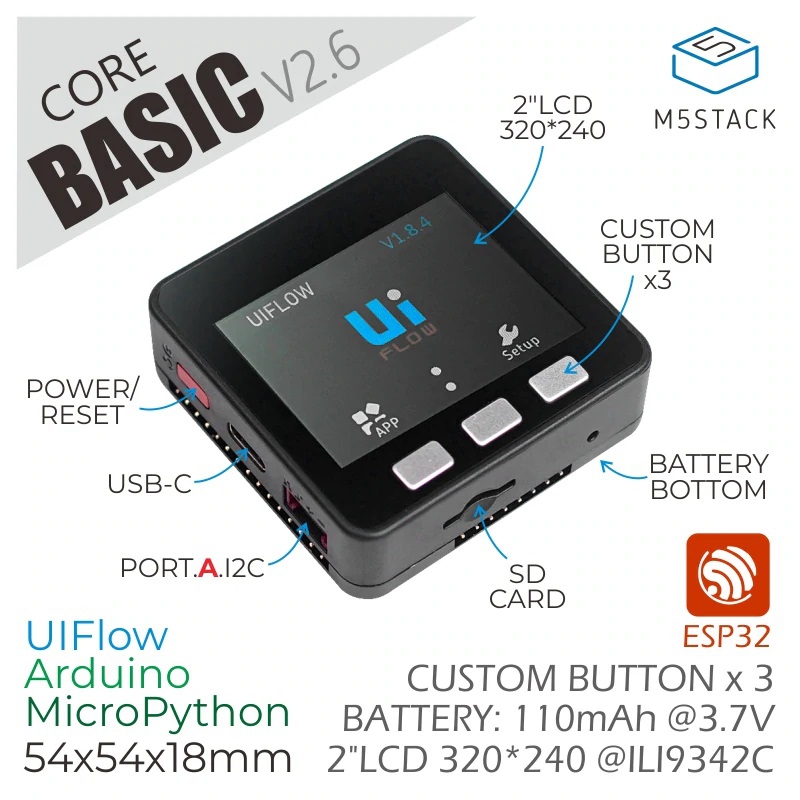

2.0 inch IPS display panel, speakers, custom buttons x3
Built-in lithium battery power, integrated power management chip, support TypeC interface
Finely tuned RF circuit for stable and reliable wireless communication
Strong Expandability:
15x IO leads
Easy access to M5Stack’s hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion

Specification

ESP32-D0WDQ6-V3 : 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash Memory : 16MB
Power Input : 5V @ 500mA
Port : TypeC x 1, GROVE(I2C+I/0+UART) x 1

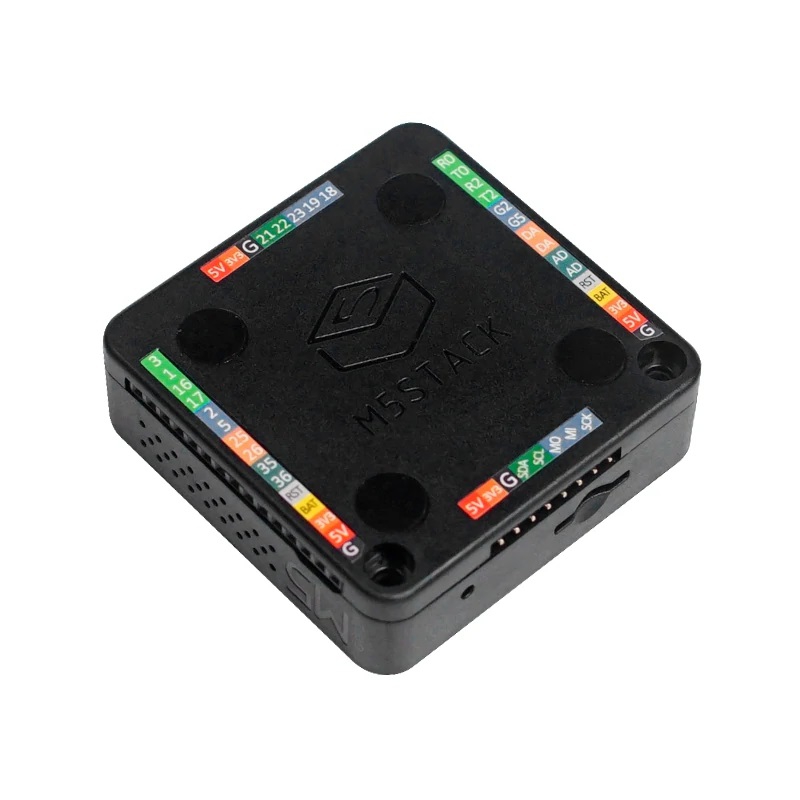

Core Bottom Port : PIN (G1,G2,G3,G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36)
IPS Screen : 2 inch, 320×240 Colorful TFT LCD, ILI9342C, max brightness 853nit
Button : Custom button x 3
Speaker : 1W-0928
Battery : 110mAh @ 3.7V
Antenna : 2.4G 3D Antenna
Operating Temperature : 0°C to 60°C
Net weight 47.2g
Gross weight 93g
Product Size 54 x 54 x 18mm
Package Size 95 x 65 x 25mm
Case Material Plastic ( PC )
