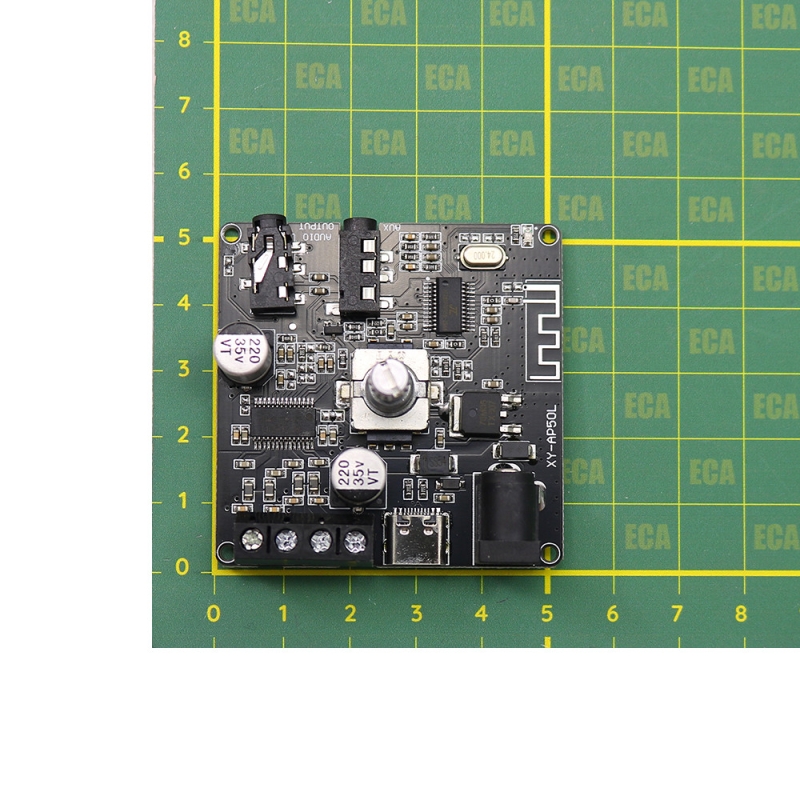

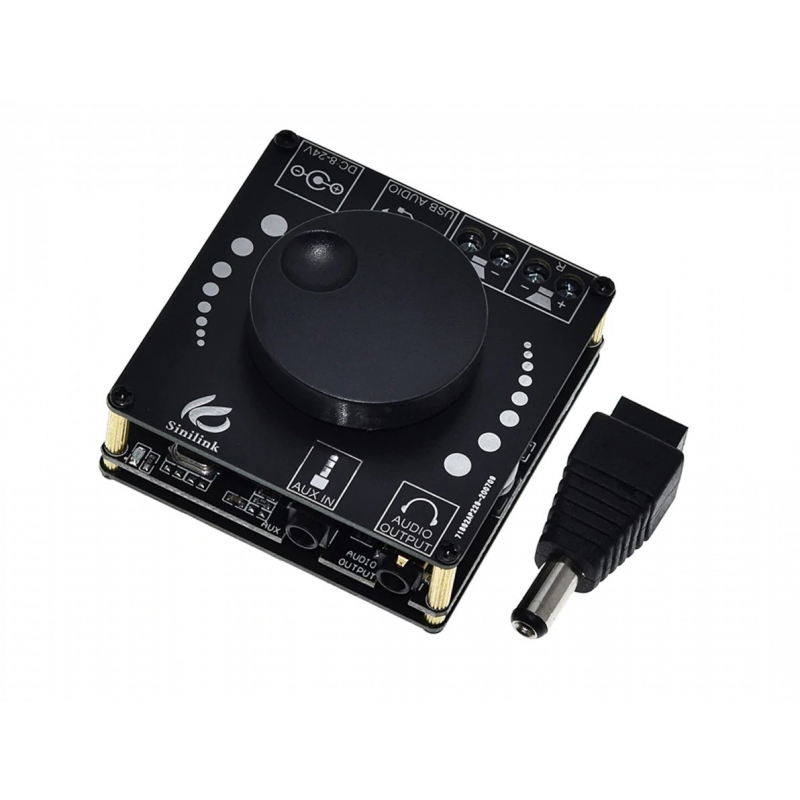

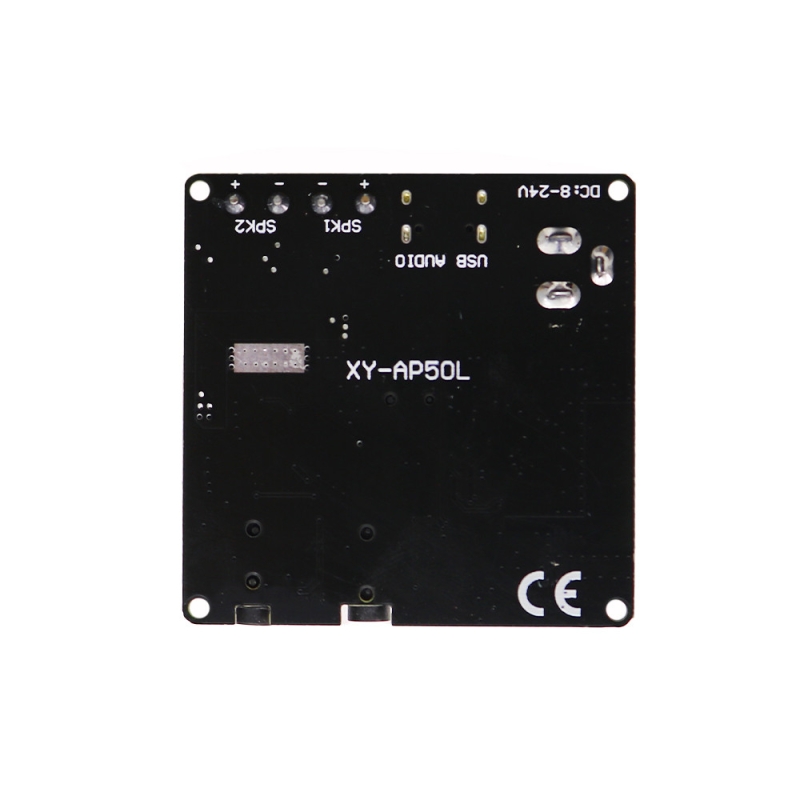

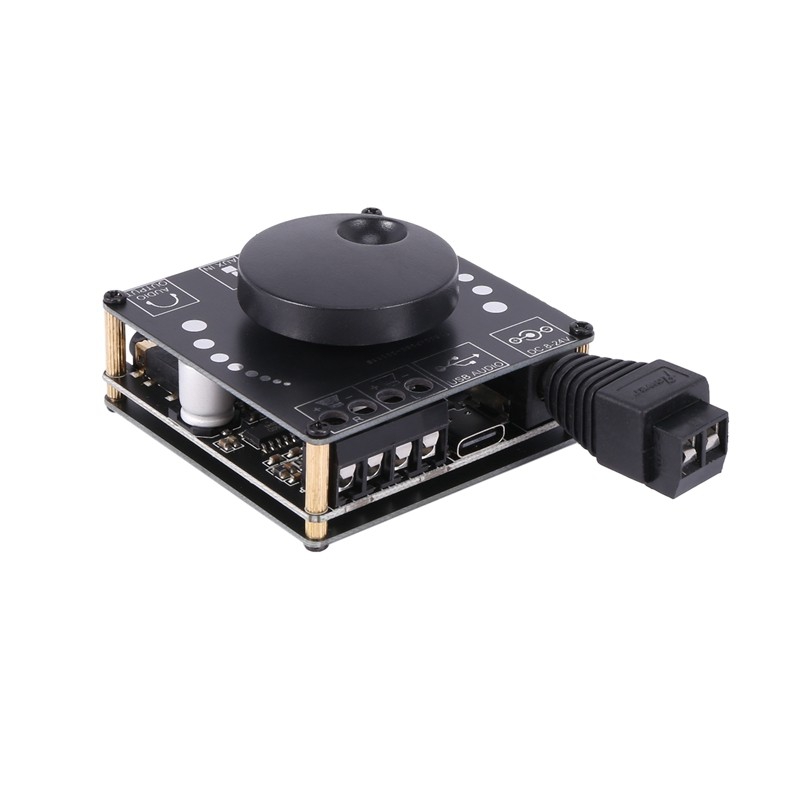

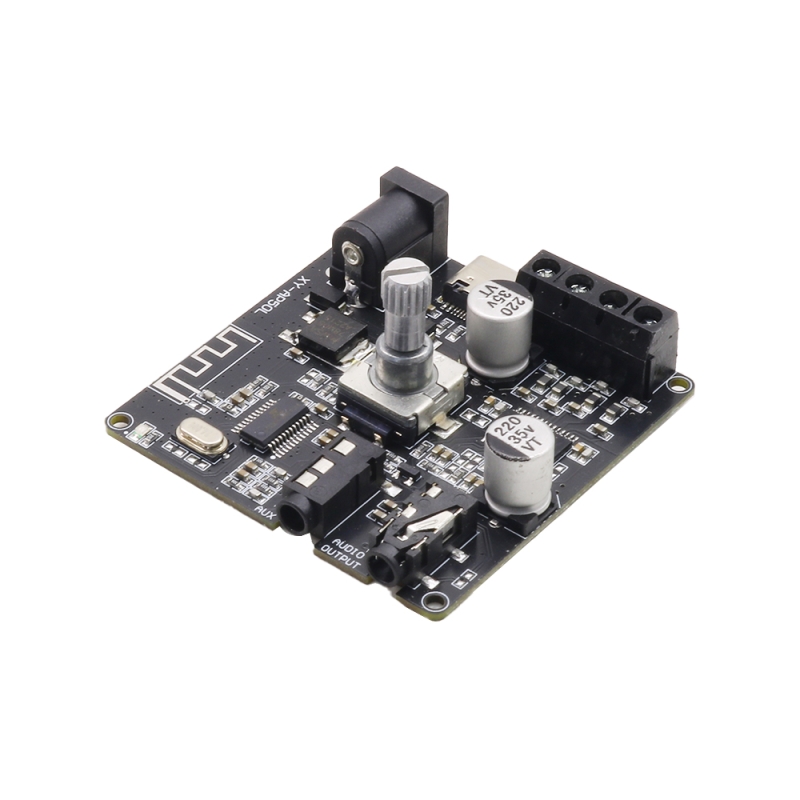

ماژول آمپلی فایر صوتی بلوتوث دار دو کاناله 2×50 وات مدل AP50L

مشخصات

ماژول آمپلی فایر 50 وات استریو دو کاناله
چیپ : AP5090D / PA3050D
ولتاژ ورودی : ولتاژ مستقیم DC در بازه 5 تا 24 ولت
حداکثر توان خروجی صدا: 50 وات
امپدانس خروجی اسپیکر: 4 تا 16 اهم
بلوتوث: نسخه 5
ابعاد: 52x52mm
خروجی صدا: دیجیتال، دو کانال استریو

Specification

Name: 50W+50W stereo bluetooth digital power amplifier board
Model: XY-AP50L Supply
chipset : AP5090D or PA3050D
voltage: DC5-12V/24V (the higher the voltage, the higher the output power)
Transmission distance: 15m
Bluetooth version: 5.0
Number of channels: left and right channels
Adapted speakers: 30W-200W 4 ohms 8 ohms 16 ohms
Color: black
Material: plastic

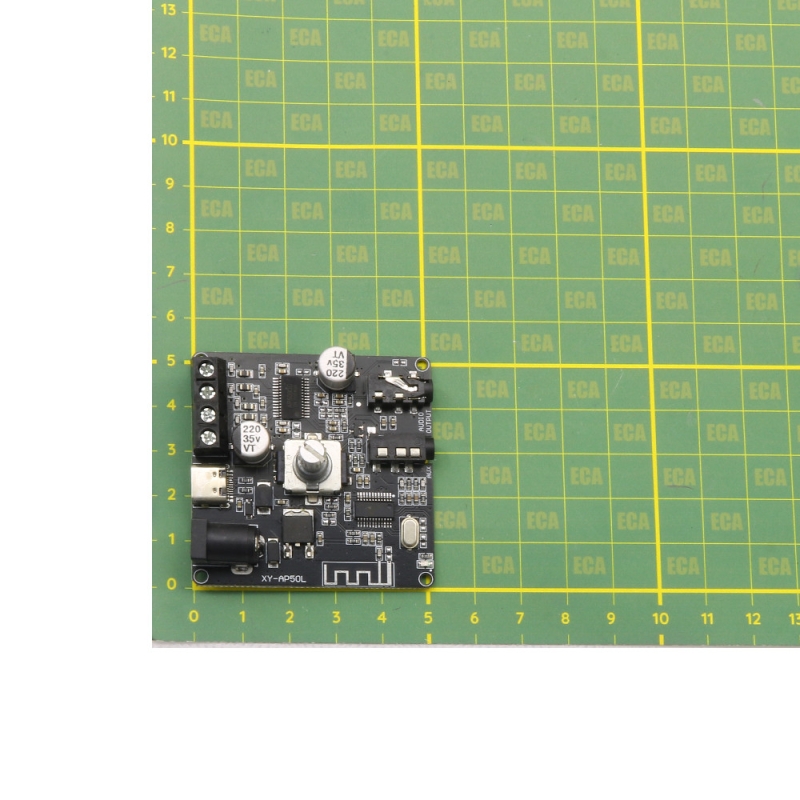

Size: 52x52x16mm

Description

1. Please use the power amplifier board as far as possible from the WIFI signal (router)
2. The recommended power supply voltage is DC 5~12V/24V, if it exceeds 26V, the chip will burn out.
3. It is recommended that the power supply current is greater than 2A.
4. The speaker cable should not be too long, and make sure it is suitable within 1 meter
5. Pay attention to static electricity protection. Before touching the power amplifier board, you must first release the static electricity from your hands to prevent the static electricity from breaking the chip. Bluetooth chips are more sensitive to static electricity.
6. It is recommended to adapt the speaker with a rated power of 40W or higher to prevent the speaker from heating up and burning.

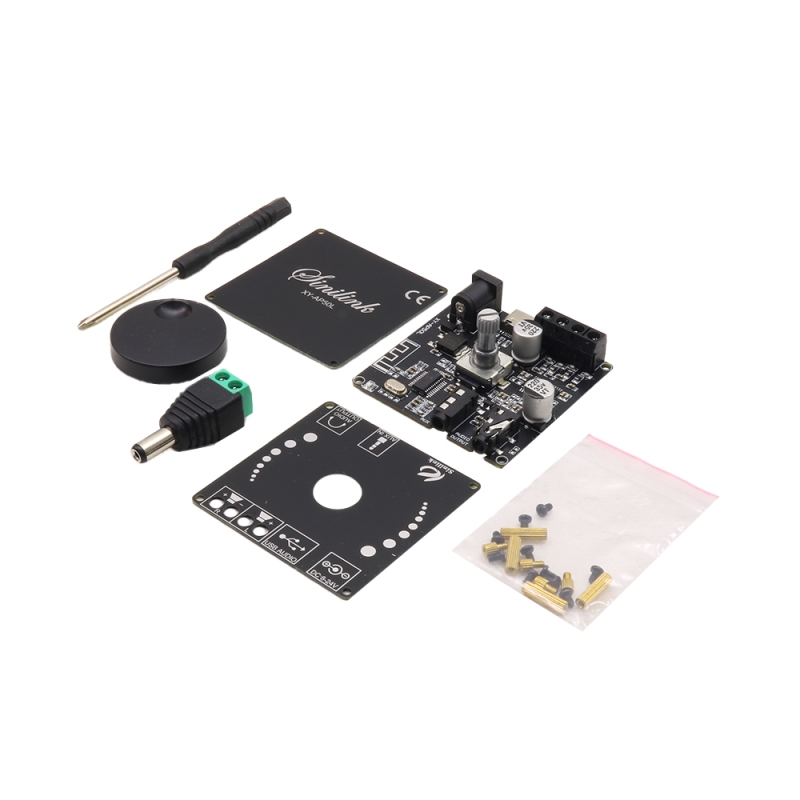

Only the above package content, other items are not included.
Note: Light and different screens may cause the color of the item in the image to be a little different from the real one. The measurement allowed error is +/- 1-3cm.
