ماژول سنسور تاچ خازنی 8 تایی CAP1188

Introduction

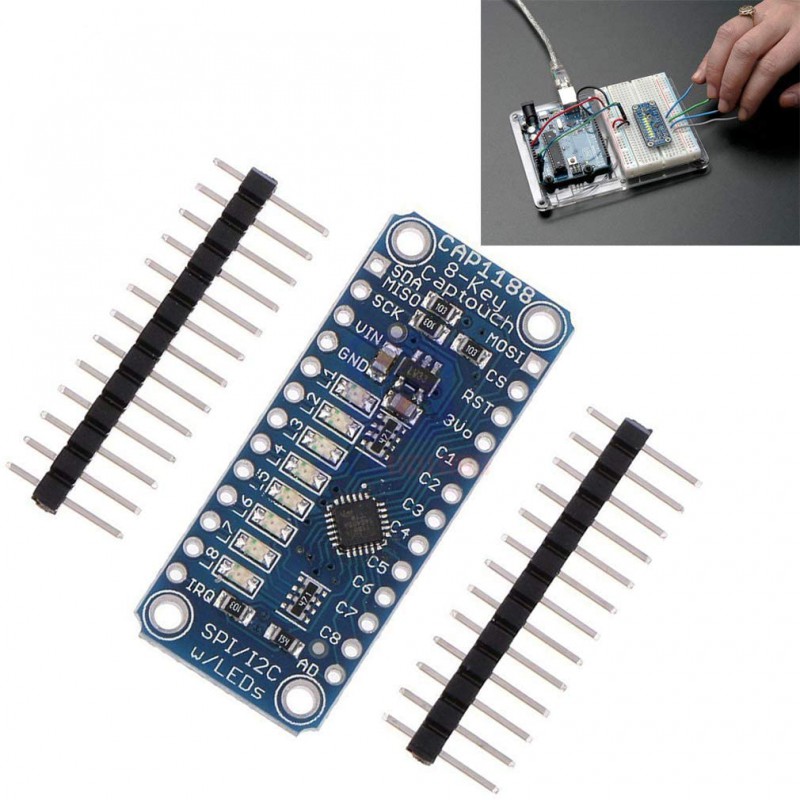

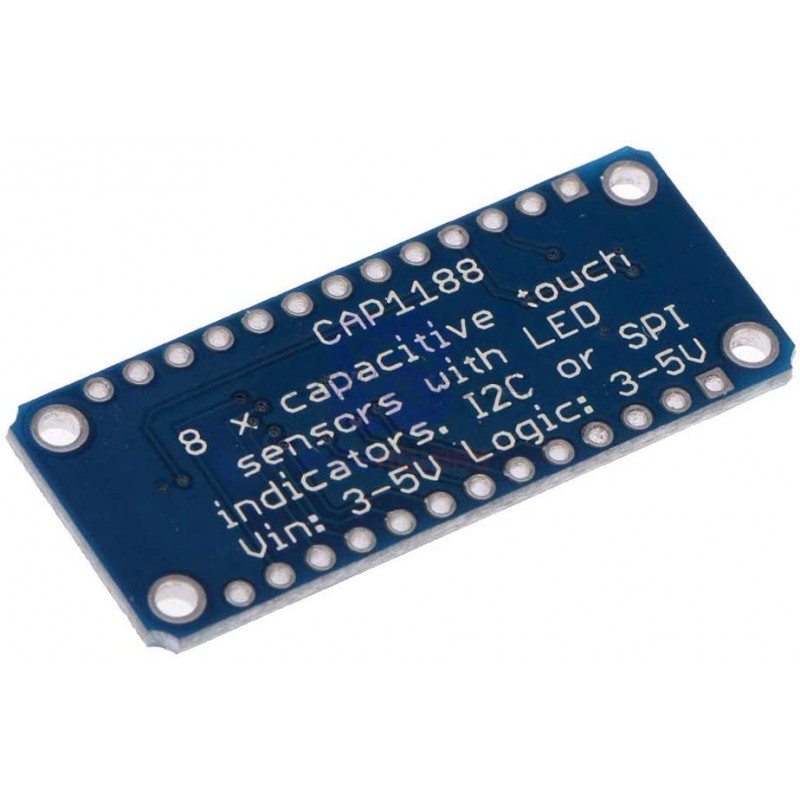

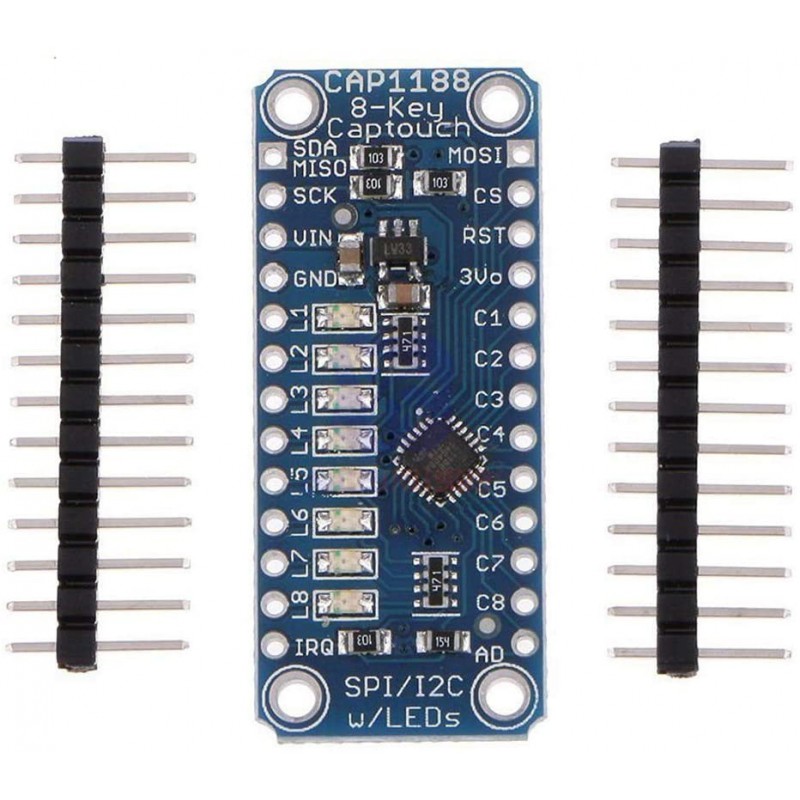

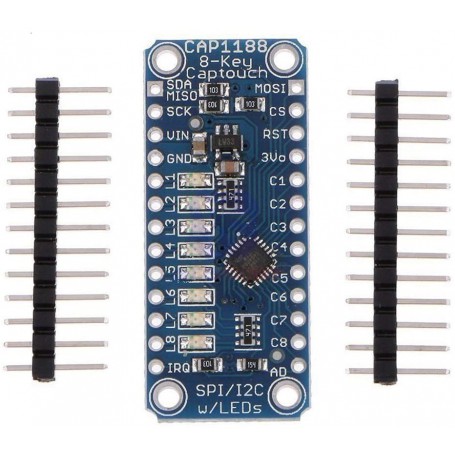

CAP1188 8 Key Capacitive Touch Sensor Module SPI I2C Captouch LED 8 Button 8 Keys Interfaces 3V-5V for Arduino.

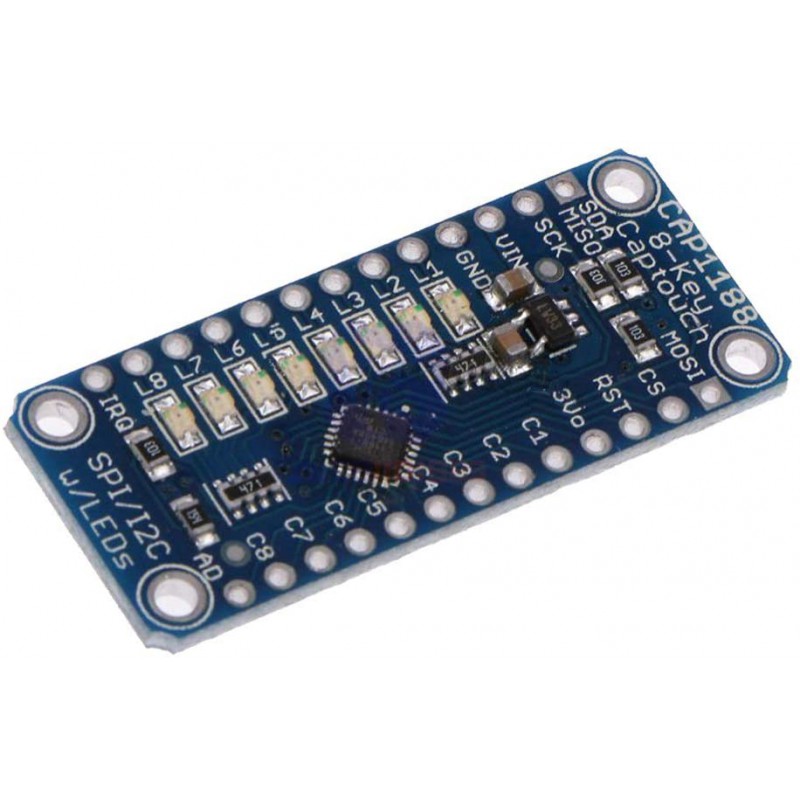

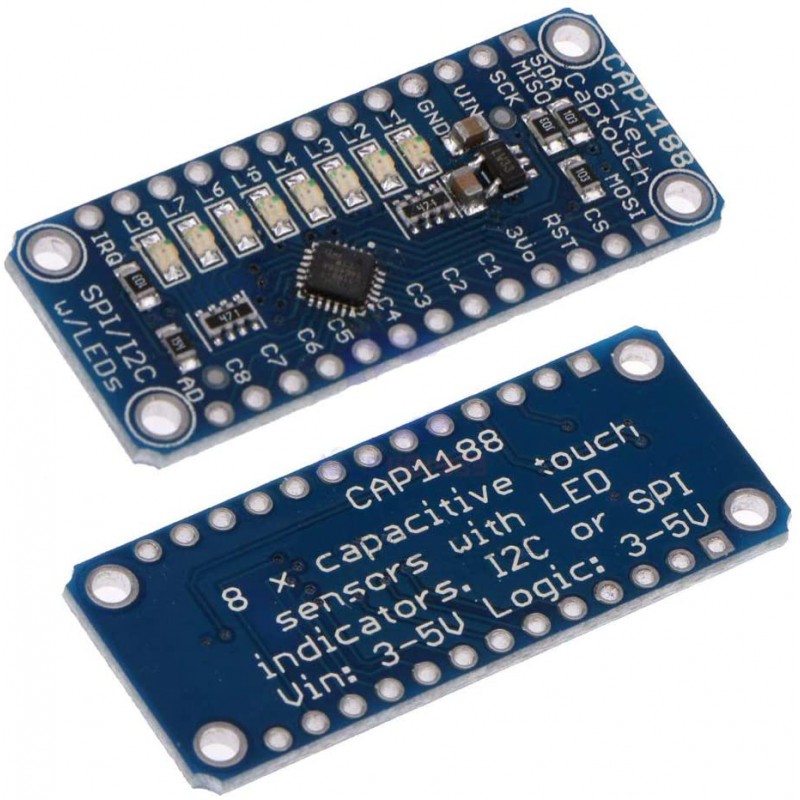

Add lots of touch sensors to your next microcontroller project with this easy-to-use 8-channel capacitive touch sensor breakout board, starring the CAP1188. This chip can handle up to 8 individual touch pads, and has a very nice feature that makes it stand out for us: it will light up the 8 onboard LEDs when the matching touch sensor fires to help you debug your sensor setup.

The CAP1188 has support for both I2C and SPI, so it easy to use with any microcontroller. If you are using I2C, you can select one of 5 addresses, for a total of 40 capacitive touch pads on one I2C 2-wire bus. Using this chip is a lot easier than doing the capacitive sensing with analog inputs: it handles all the filtering for you and can be configured for more/less sensitivity.

Specification

Capacitive touch sensor
Requires soldering of header pins
Perfect for Arduino project
Comes with a fully assembled board, and a stick of 0.1″ header so you can plug it into a breadboard.
Using this chip is a lot easier than doing the capacitive sensing with analog inputs
The CAP1188 has support for both I2C and SPI, so it easy to use with any microcontroller
If you are using I2C, you can select one of 5 addresses, for a total of 40 capacitive touch pads on one I2C 2-wire bus
Sensor Type: Capacitive Touch
Sensing range: 8 button / key interfaces
Sensitivity: I2C, SPI
Voltage – Supply: 3 V ~ 5V
Material: Plastic
Size: Approx.40*18*4mm
Add lots of touch sensors to your next microcontroller project with this easy-to-use 8-channel capacitive touch sensor breakout board, starring the CAP1188. This chip can handle up to 8 individual touch pads, and has a very nice feature that makes it stand out for us: it will light up the 8 onboard LEDs when the matching touch sensor fires to help you debug your sensor setup.

Package included:

1* CAP1188 8 Key Capacitive Touch Sensor
2* Pin Headers
