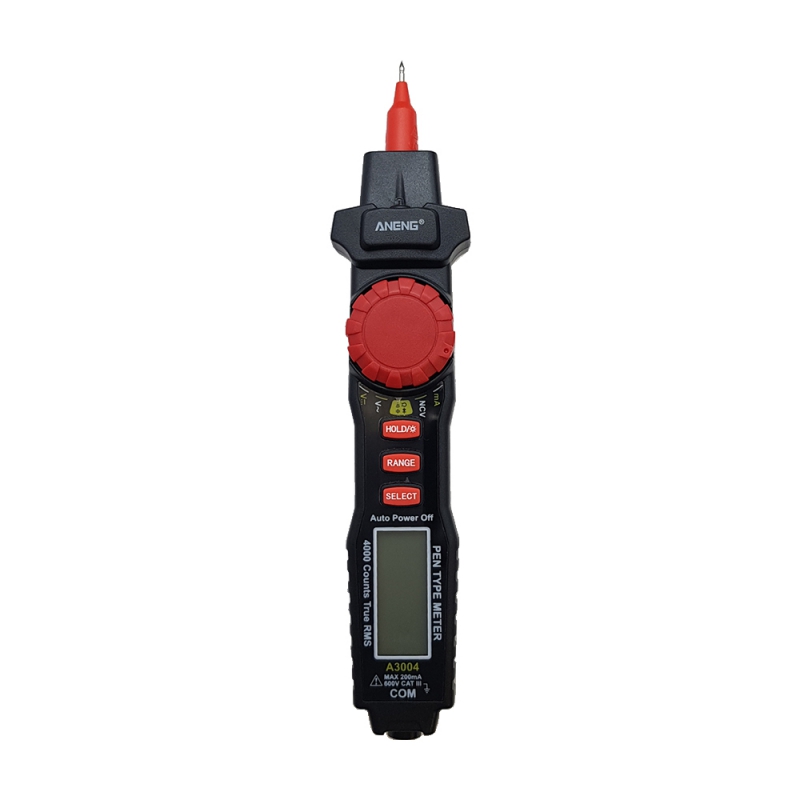

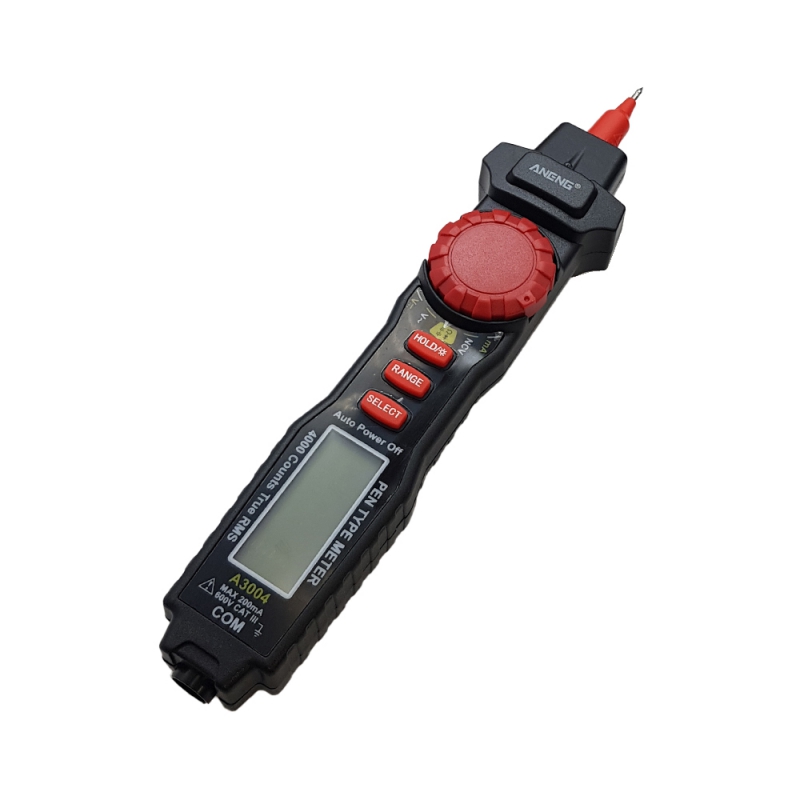

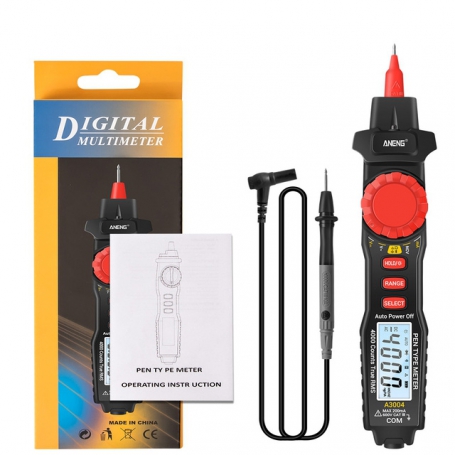

مولتی متر قلمی دیجیتالی ANENG مدل A3004

مشخصات

رنج اندازه گیری جریان: 40-200 میلی آمپر
رنج اندازه گیری ولتاژ: AC 600 ولت
رنج اندازه گیری ولتاژ: DC 600 ولت
رنج اندازه گیری خازن (4nf~4mf)
رنج اندازه گیری مقاومت الکتریکی 40 مگا اهم
دارای قابلیت تست دیود
دارای قابلیت NVC
نوع نمایشگر LCD
دارای نور پس زمینه
دارای قابلیت خاموشی اتوماتیک
دارای تست بازر
دارای آلارم کاهش باتری
ابعاد دستگاه 220.5mmx30mmx20.5mm

Introduction

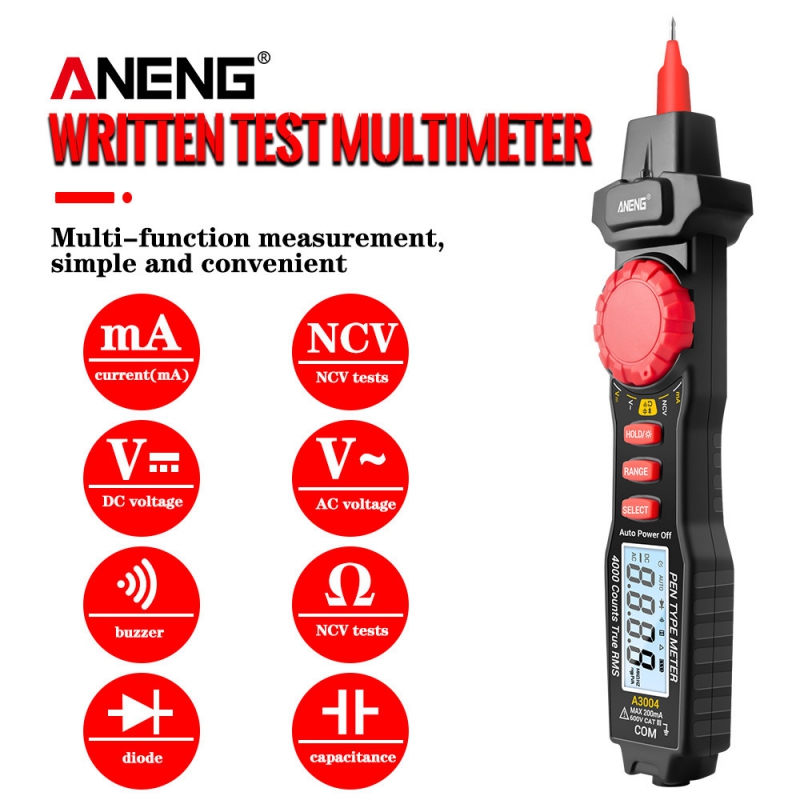

Multifunction Pen Multimeter — This auto pen-type multimeter can perform perform 4V-600V AC/DC voltage measurement, 40mA-200mA AC/DC current measurement, resistance from 400Ω-40MΩ, capacitance diode measurement and continuity buzzer, fire detection, etc.

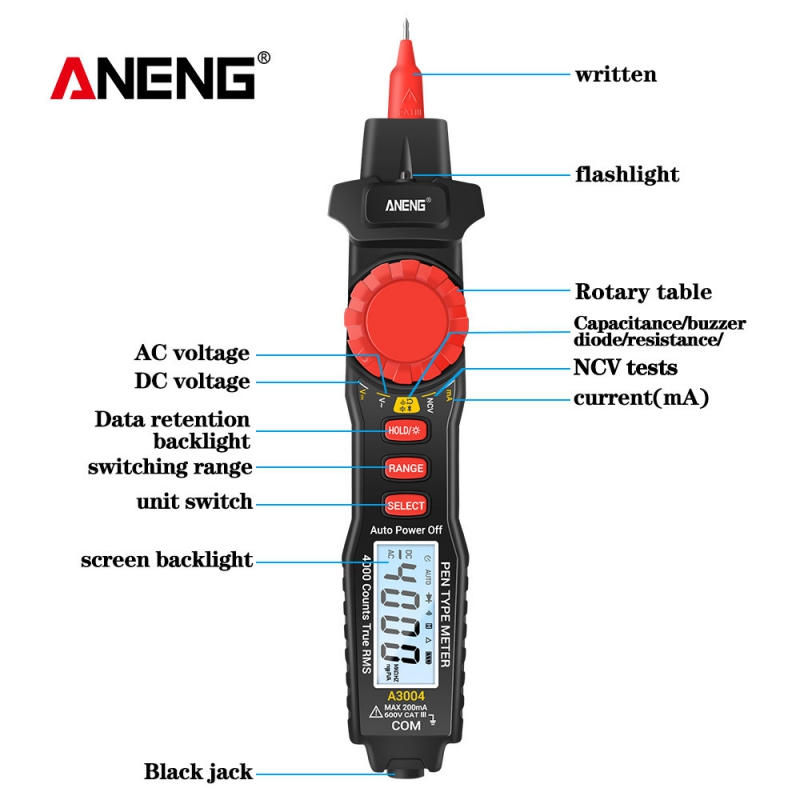

Convenient Use — Since 4000 counts large backlight LCD scree and flashlight function, the value can be clearly read even in dark places. Data hold function, you can save data with one click, convenient for data reading.

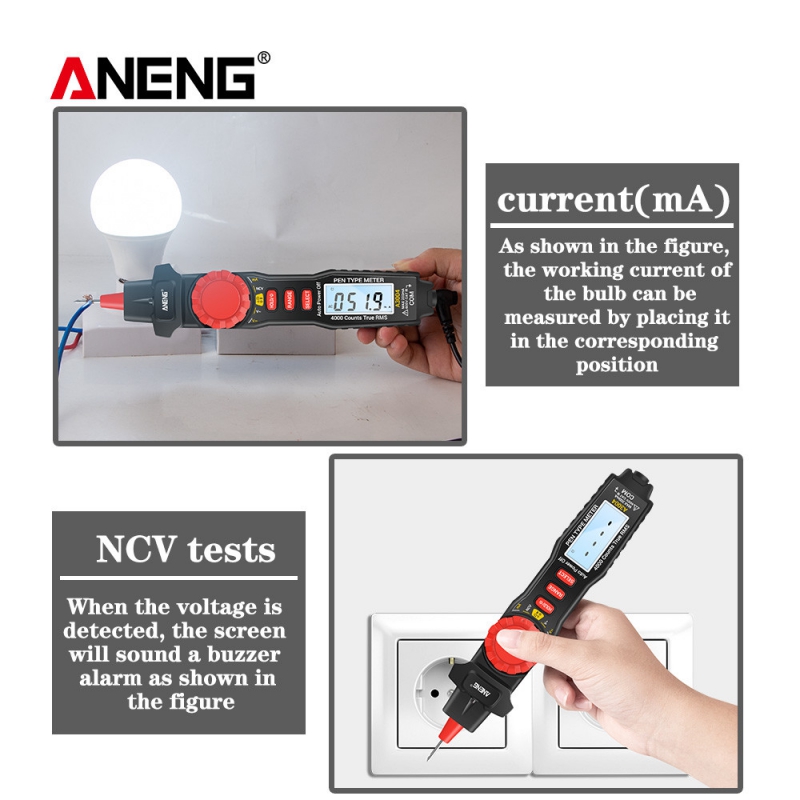

Non- Measurement — Digital multimeter supports NCV non- voltage detection, and can distinguish the null line and the fire wire to the risk of electric shock. and reliable.

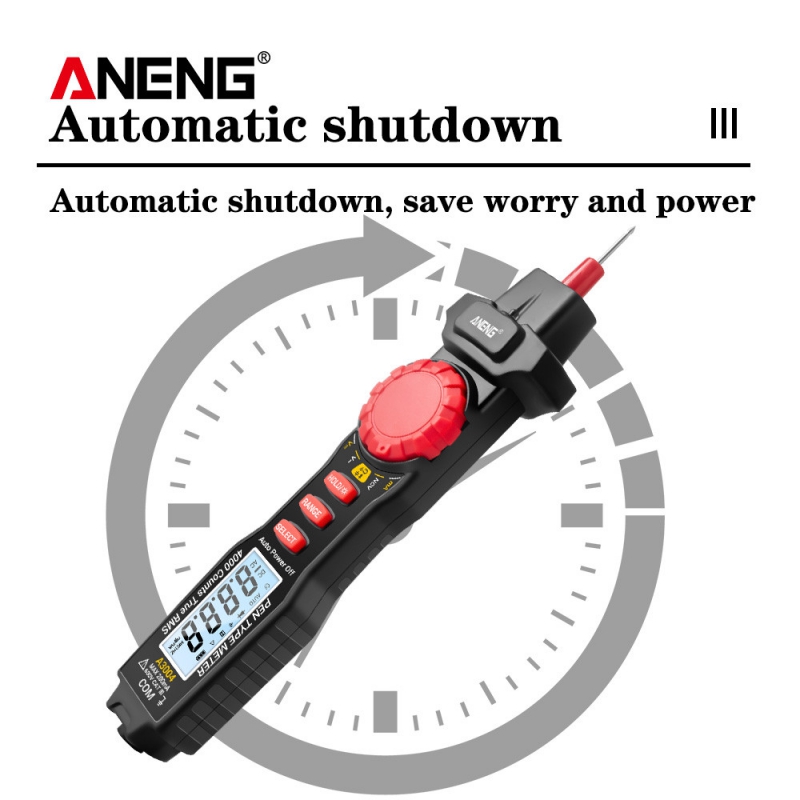

Auto Power Off — The pen multimeter has an automatic shutdown function, which will automatically shut down if there is no operation for mins, lowe power consumption.
Easy Carry — Compact pen type design for convenient single hand use, easy to carry and operate. It is very suitable for home, school, laboratory, factory and other applications.

Specification

Colour: red
DC voltage: 400mV-4V-40V-400V-600V ± 3%.
AC voltage: 400mV-4V-40V-400V-600V ± 3%.
DC current: 40 mA-200 mA ± 3%.
AC current: 40 mA-200 mA ± 3%.
Resistance measurement Ω: 400-4k-40k-400k-4M-40MΩ ± 3%.
Capacitance measurement F: 40nF-40nF-4uF-40uF-400uF-4mF ± 3%.
mA || -1.5 V power measurement: a (mA) socket measurement must be received.
Continuity test (buzzer): yes (forward pressure drop).
3 1/2 LCD display: number 1999.
Diode measurement: yes.
Tertiary tube measurement: yes.
FireWire Discrimination: Yes
Overload protection: yes.
Low voltage symbol display: yes.
Auto power off: yes (approx. 15 minutes).
Product size: 220.5mmx30mmx20.5mm
