کنترلر پرینتر سه بعدی RAMPS ورژن 1.6 – RepRap

این کنترلر از جمله بردهای توسعه دهنده بردهای آردوینو می باشد و نسخه بهینه شده 1.4 می باشد. در ساخت پرینتر سه بعدی یا cnc های سه محوره کار برد دارد. ماژول های راه انداز استپ موتور A4988 و DRV8825 به آسانی روی این برد سوار می شوند.

Introduction

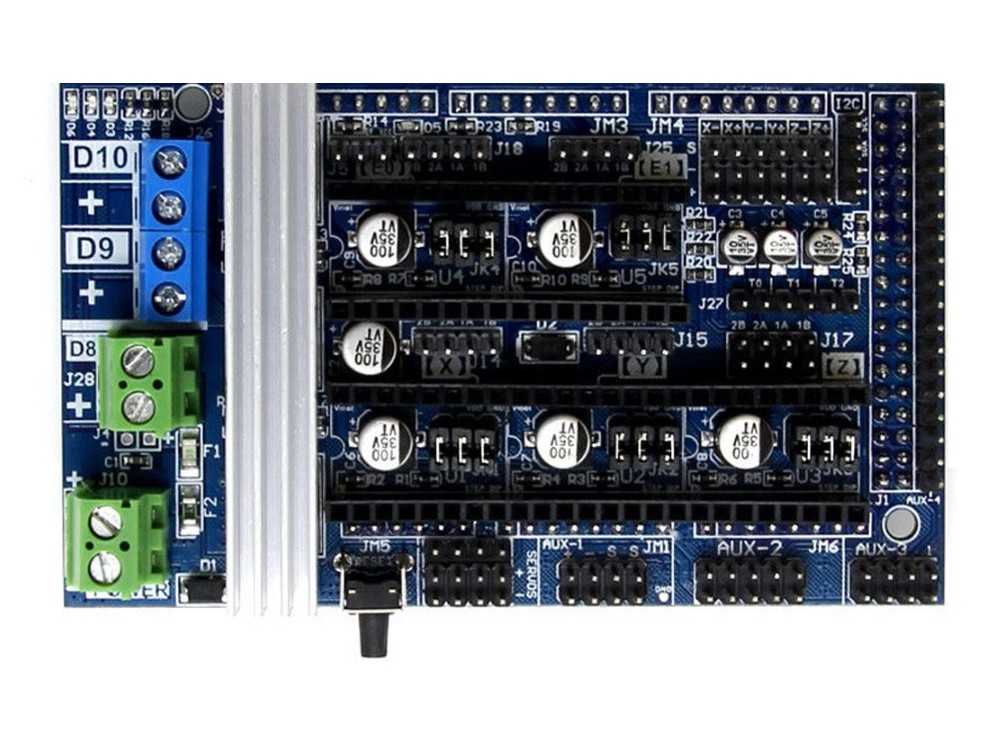

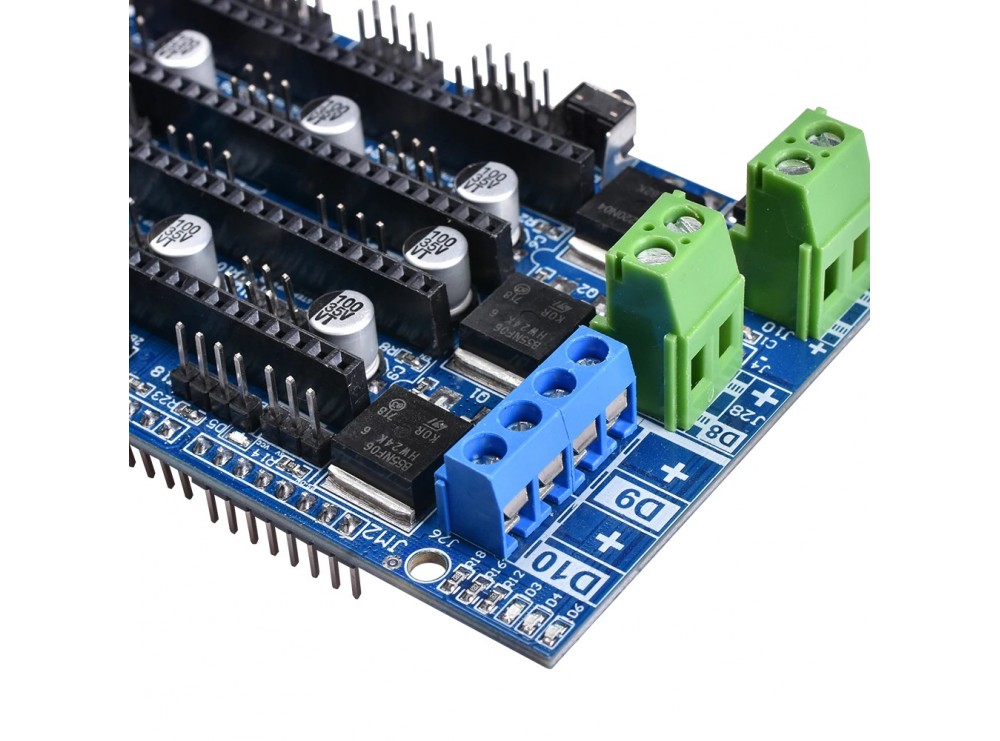

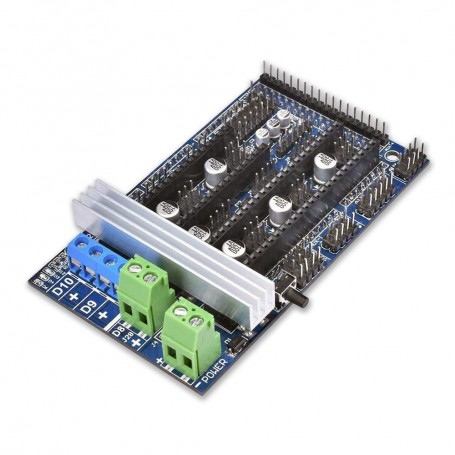

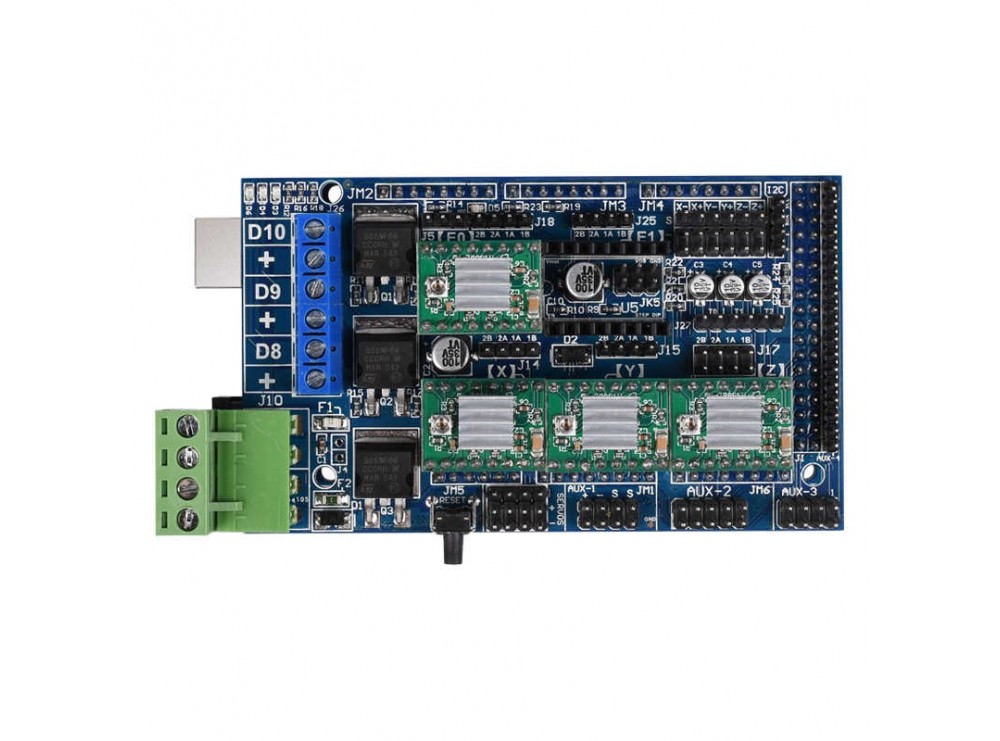

RAMPS 1.6 is the second RAMPS iteration released by BIQU/BIGTREETECH. It replaces the original green power connector with a pair of screw terminals, adds a larger heatsink over the MOSFETS, and has a larger bed MOSFET. It maintains the surface-mounted fuses and flush MOSFETS of the RAMPS 1.5. Also, the positions of the D1 and D2 diodes have been swapped from the positions in RAMPS 1.4, the D1 diode is now the diode closest to fuse F2. The same is true for RAMPS 1.5, also manufactured by BIQU/BIGTREETECH. RAMPS1.6 is optimized and launched based on RAMPS1.4 by Biqu R & D team
They change the original plug-in MOS tube to patch-type MOS tube in order to solve the problem of plug-in MOS tube easy to break, take up a large area, poor heat dissipation , which can improve the stability and aesthetics of the board
The features of multiple extended interface and replaceable parts make RAMPS1.6 become a control board with powerful upgrade capability and scalable modularity

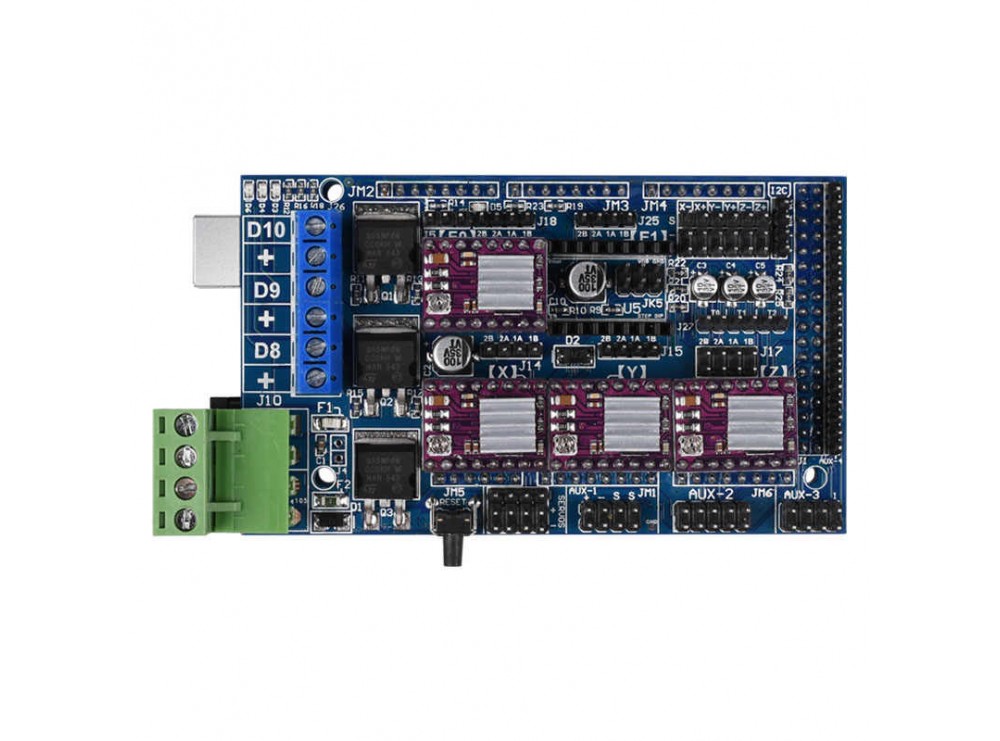

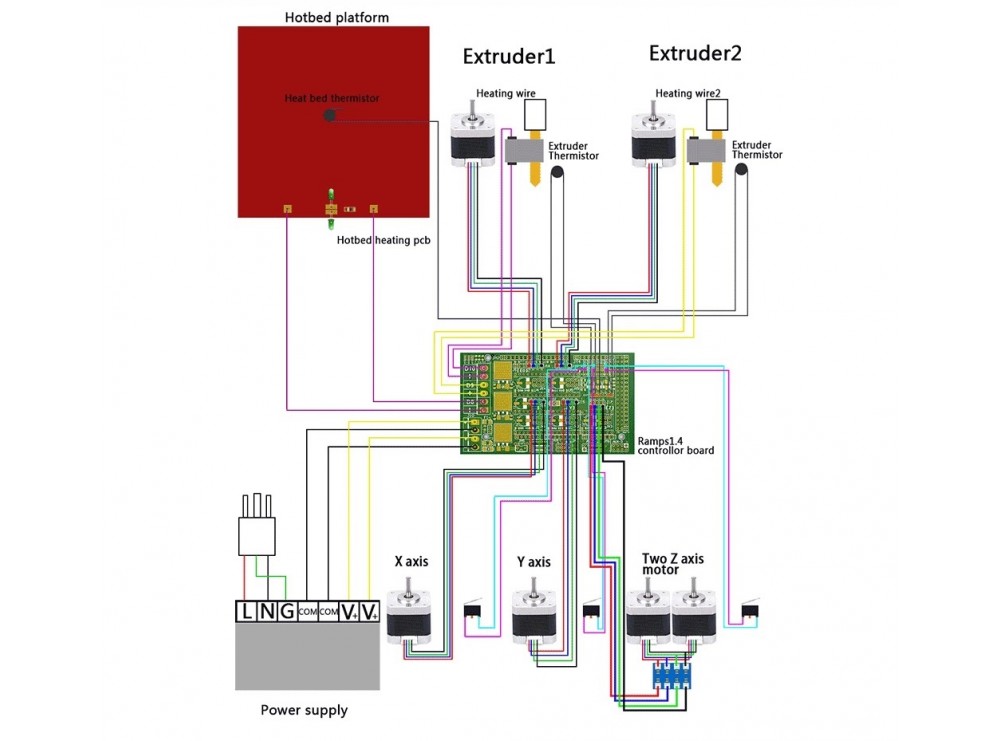

The controller board can be used when the pins on the back of the board are connected to the Arduino Mega and the front is connected to stepper motor drives

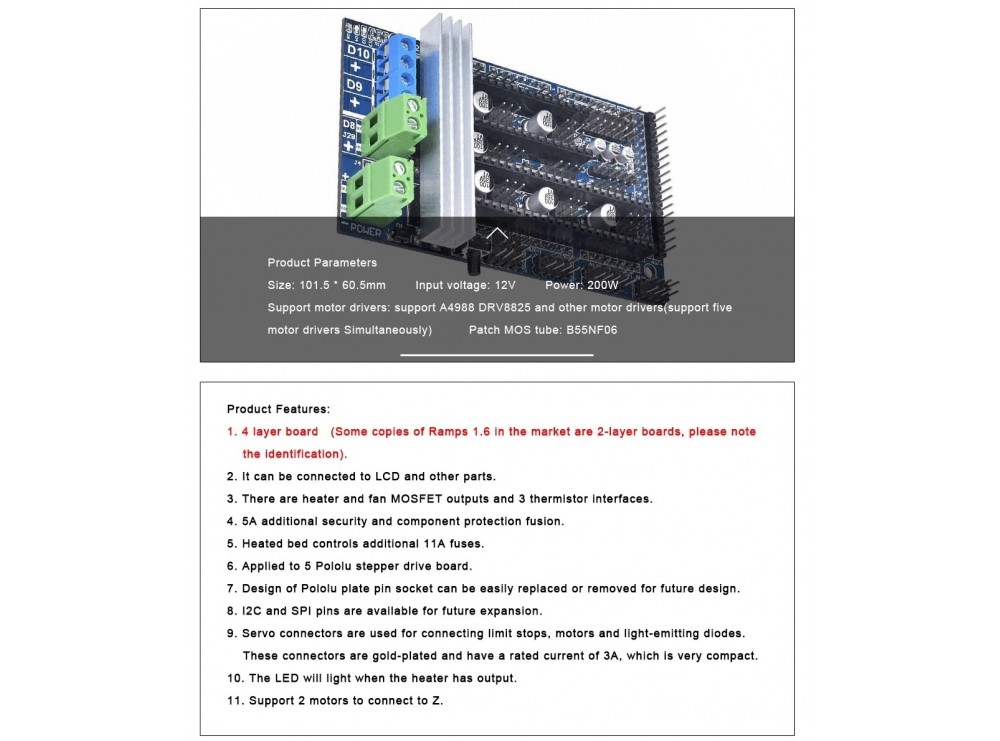

Specification

Size: 101.5 * 60.5mm
Voltage:12V
Power: 200W
Patch MOS tube: B55NF06
Support motor drivers: support A4988,DRV8825 and other motor drivers(support five motor drivers Simultaneously)

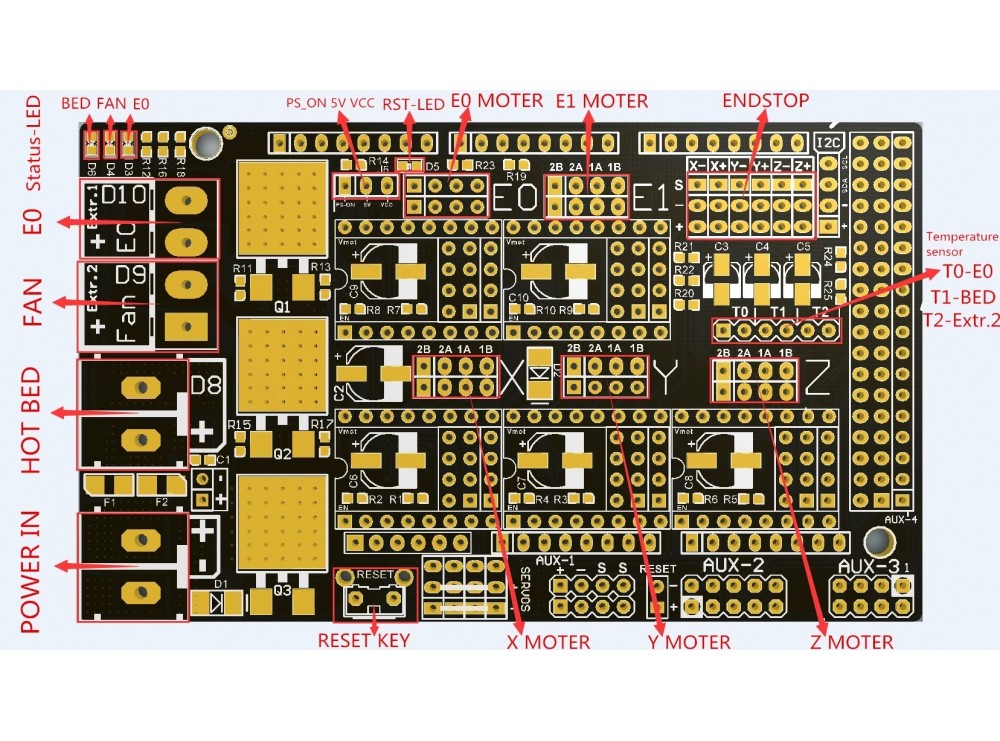

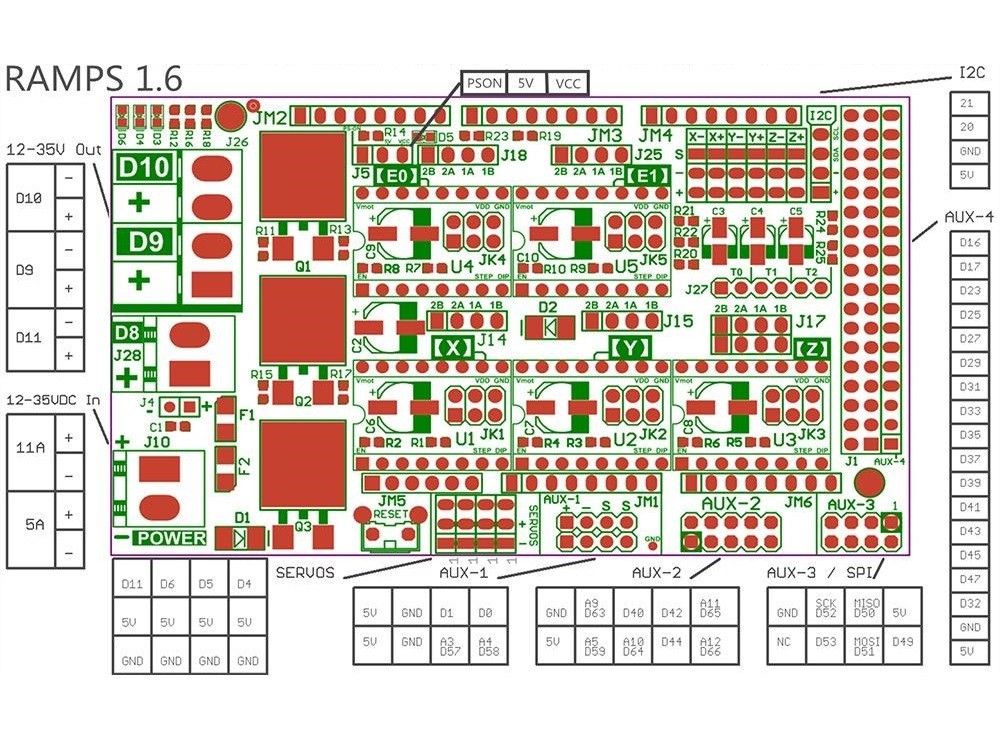

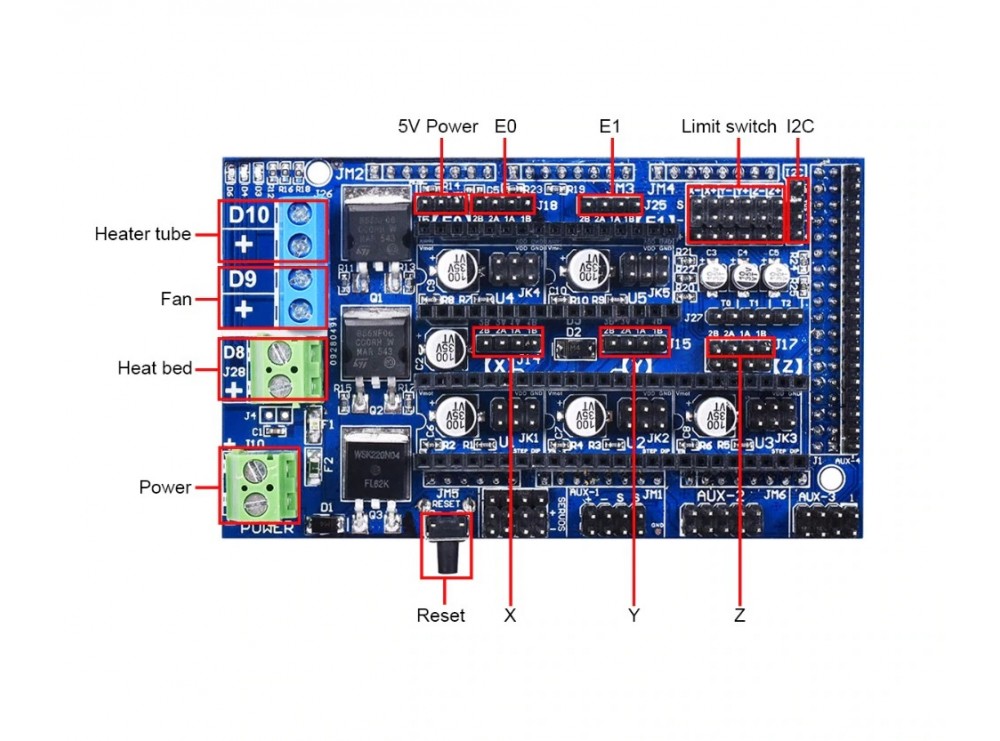

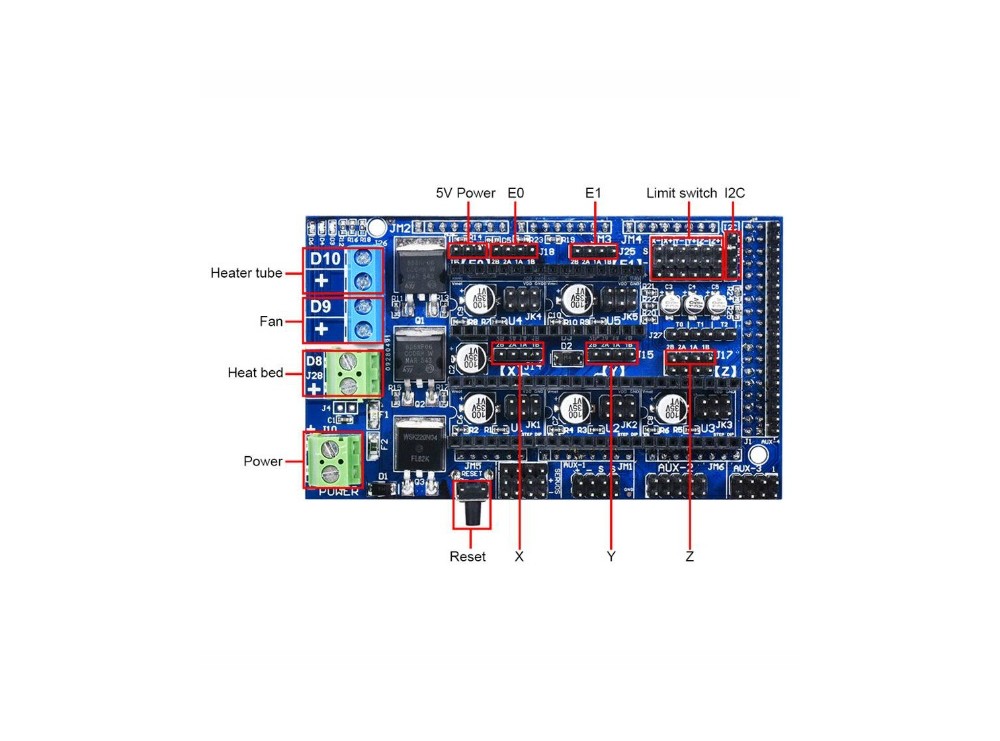

1.It can be connected to LCD and other parts.
2.There are heater and fan MOSFET outputs and 3 thermistor interfaces
3.5A additional curity and component protection fusion
4.Heated bed controls additional 11A fus
5.Applied to 5 Pololu stepper drive board
6.Design of Pololu plate pin socket can be easily replaced or removed for future design
7.I2C and SPI pins are available for future expansion
8.rvo connectors are ud for connecting limit stops, motors and light-emitting diodes.
The connectors are gold-plated and have a rated current of 3A, which is very compact.
9.The LED will light when the heater has output
10.Support 2 motors to connect to Z Prusa Mendel
Q: Why choo our ramps 1.6 type contorller board ?

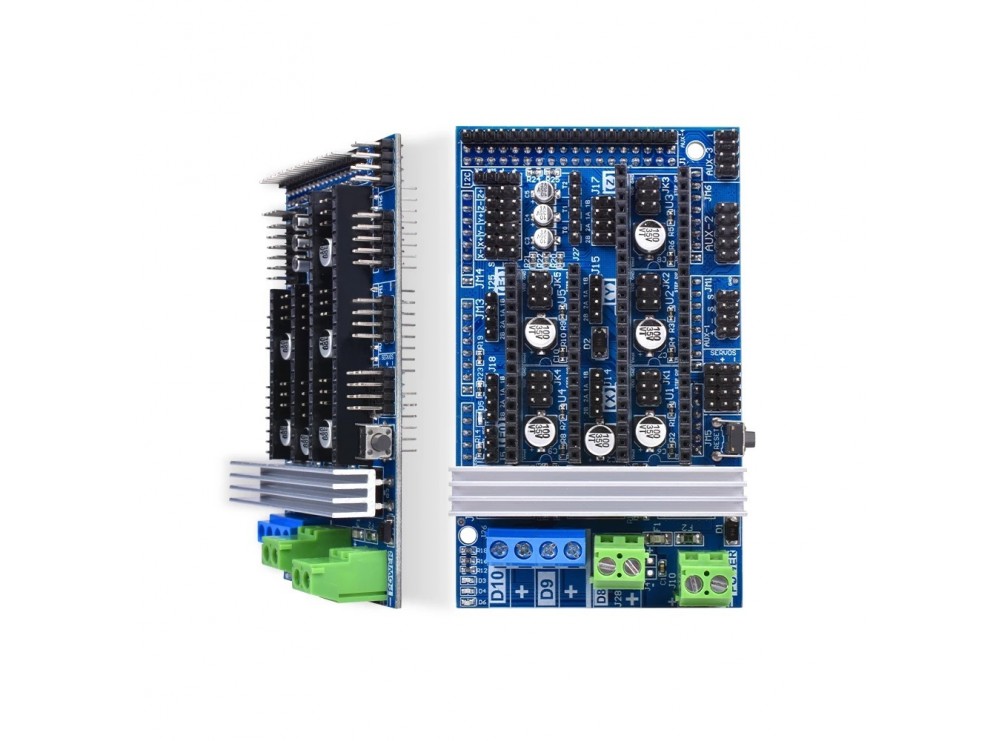

A: You can check the different with the three-dimensional diagram.Our ramps 1.6 have 4 layer .A high quality ramps 1.6 effect more than 10pcs cheaper copy board
Material: plastic, metal
Note: Light shooting and different displays may cau the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
RAMPS1.6 is optimized and launched based on RAMPS1.4 by Biqu R & D team
They change the original plug-in MOS tube to patch-type MOS tube in order to solve the problem of plug-in MOS tube easy to break, take up a large area, poor heat dissipation , which can improve the stability and aesthetics of the board
The features of multiple extended interface and replaceable parts make RAMPS1.6 become a control board with powerful upgrade capability and scalable modularity
The controller board can be used when the pins on the back of the board are connected to the Arduino Mega and the front is connected to stepper motor drives
