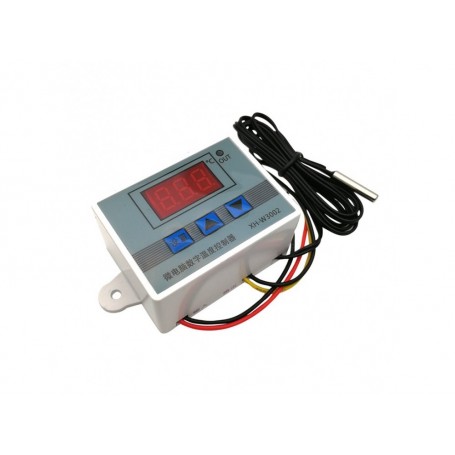

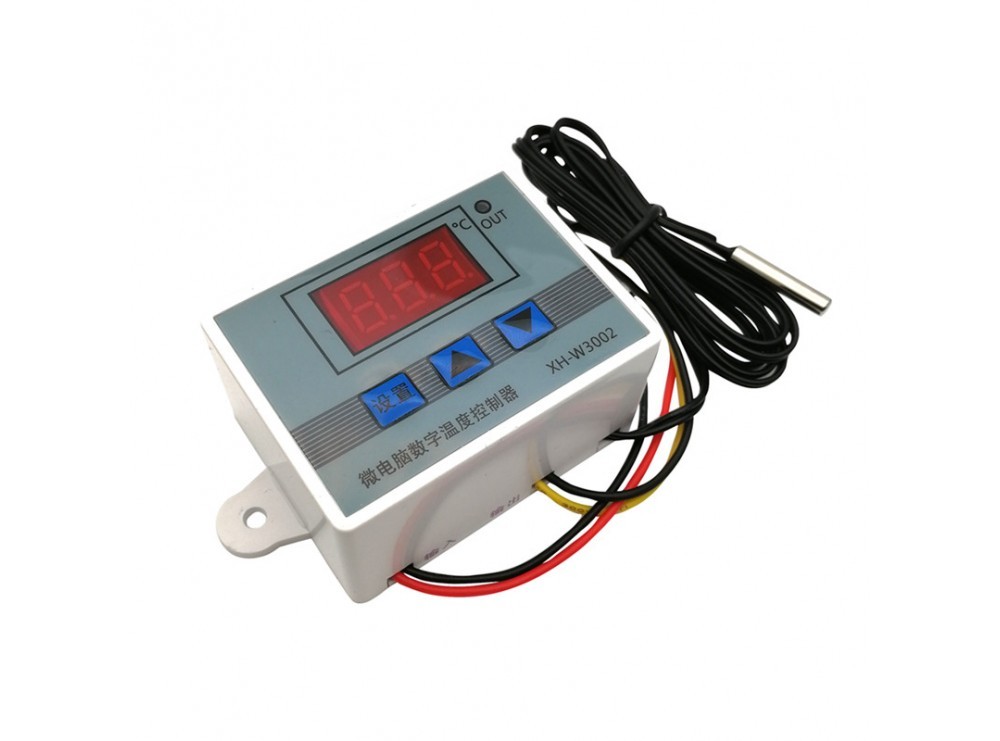

ترموستات دیجیتال 12VDC مدل XH-W3002

توضیحات

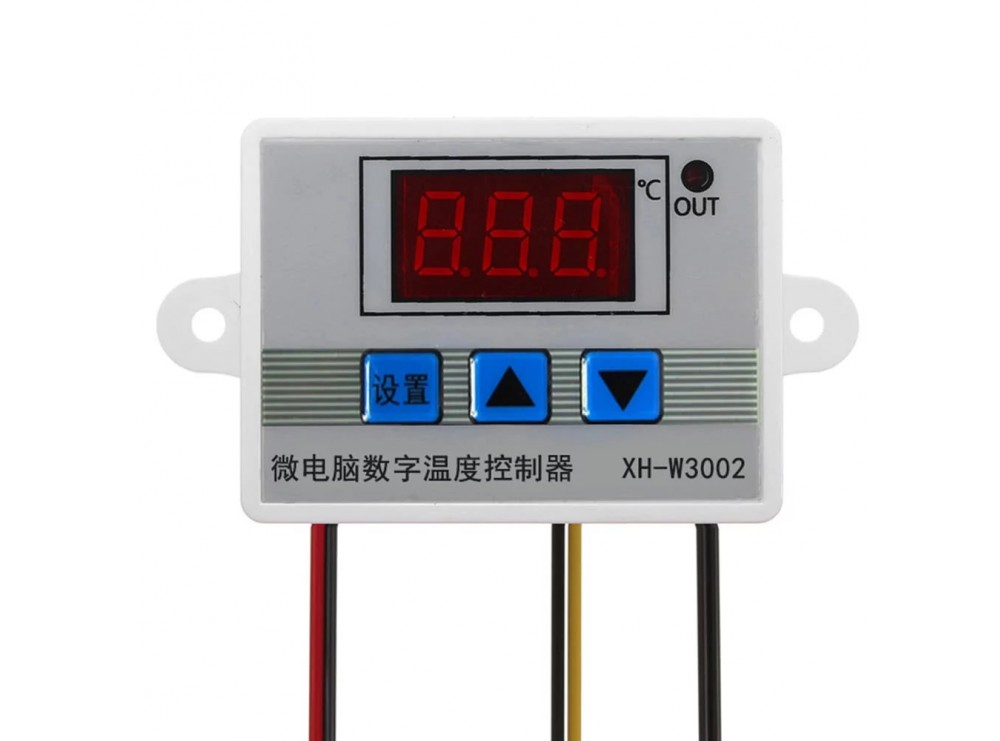

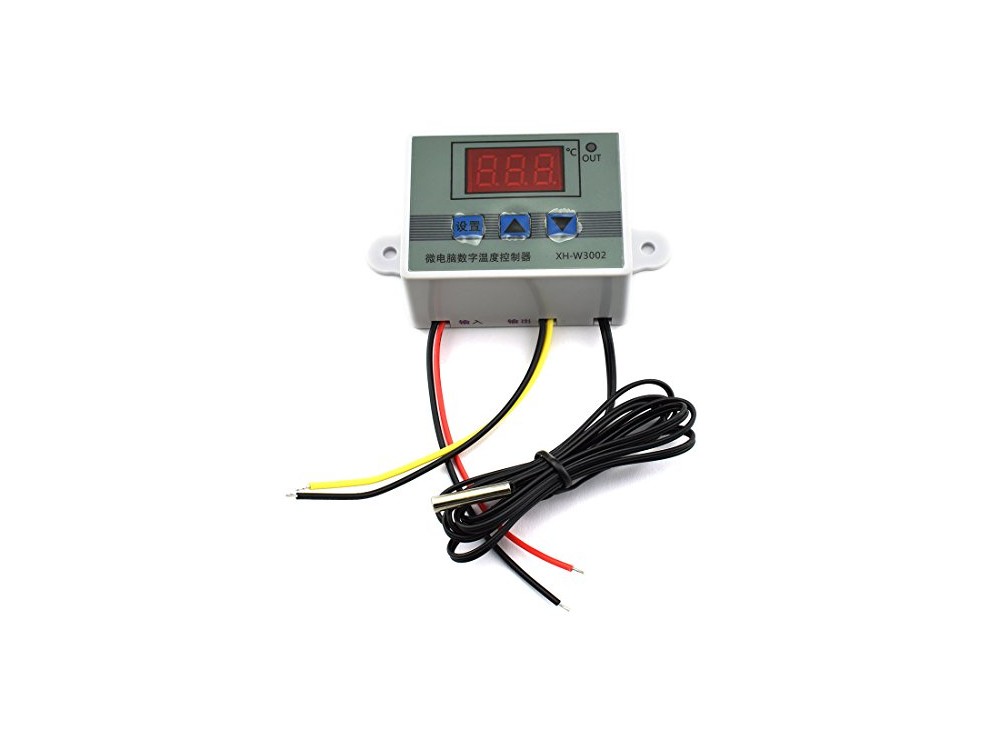

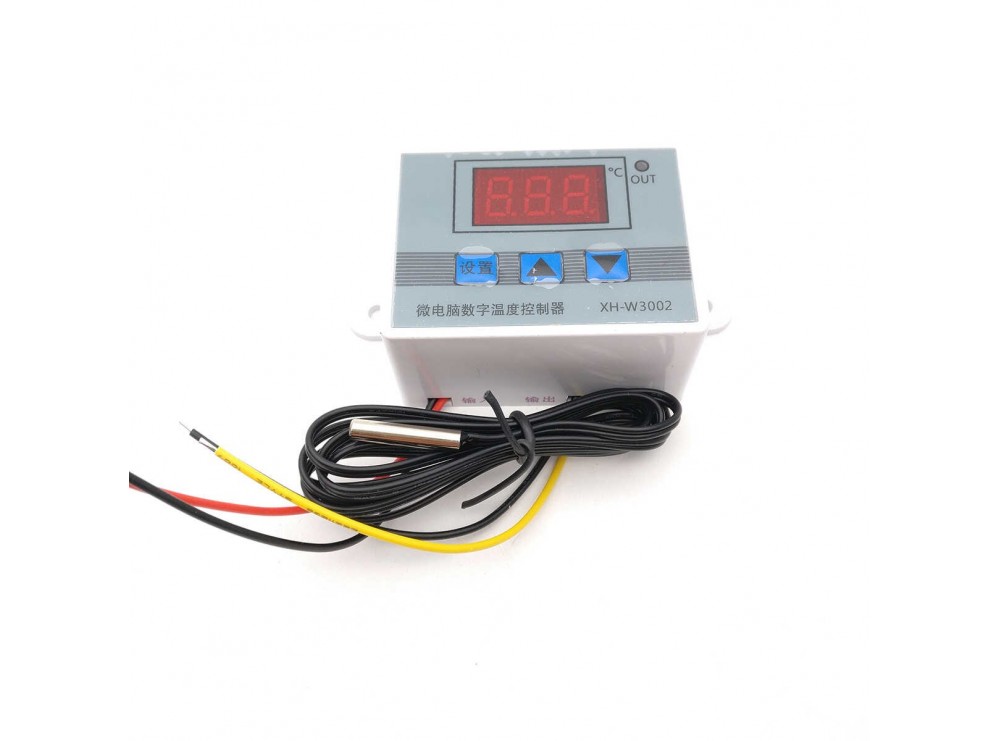

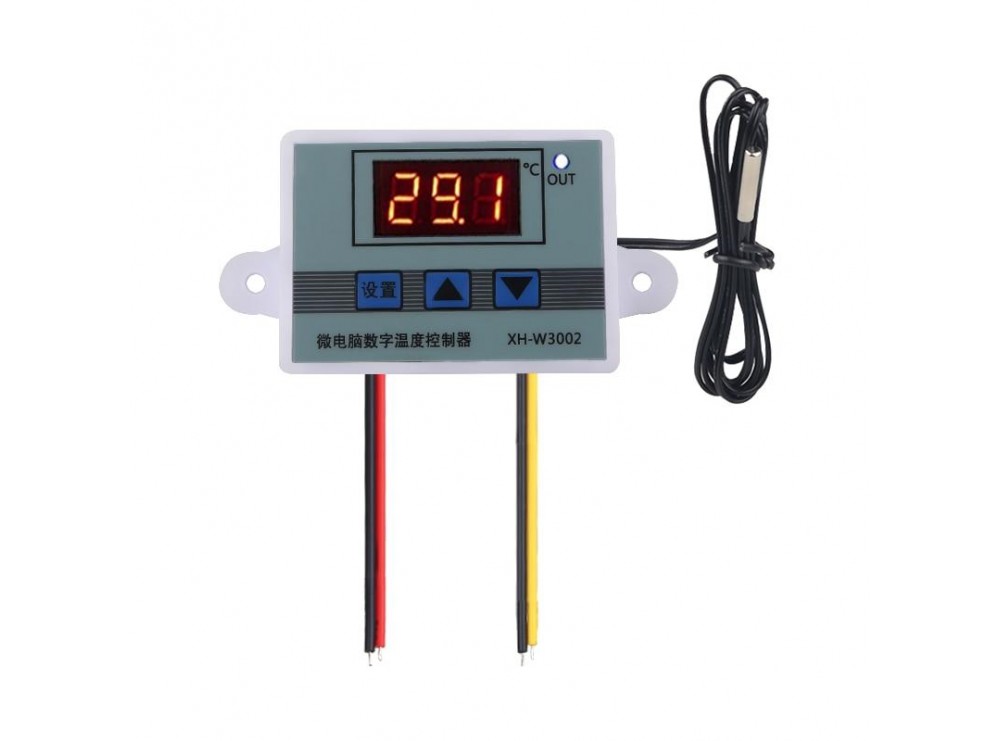

کنترل کننده دیجیتال دما با دقت بالا دارای نمایشگر 7segment سه رقمی، کلیدهای کنترلی و سنسور دمای بیرونی NTC10K ضدآب

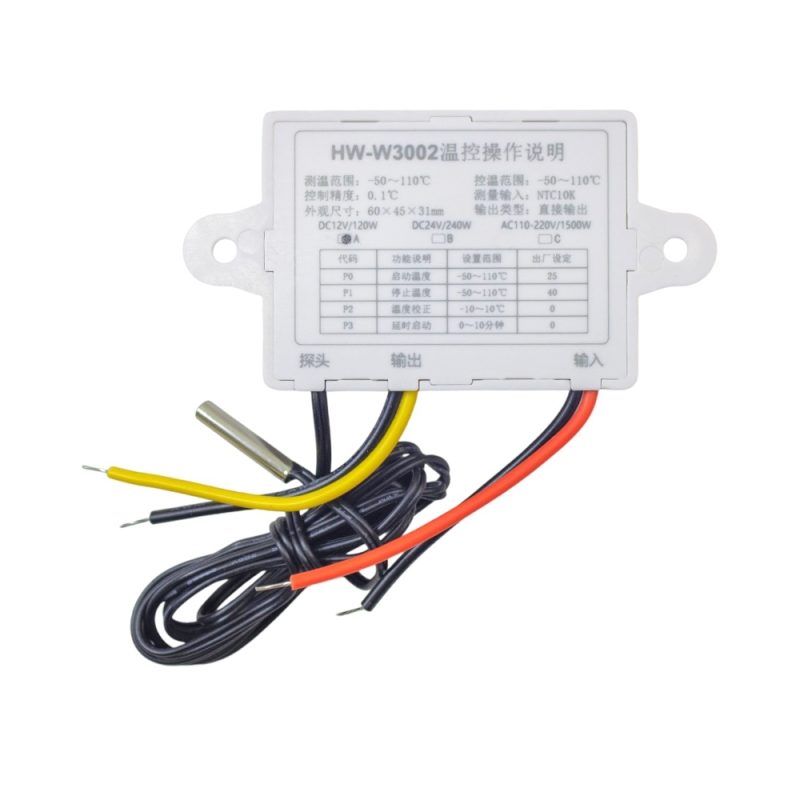

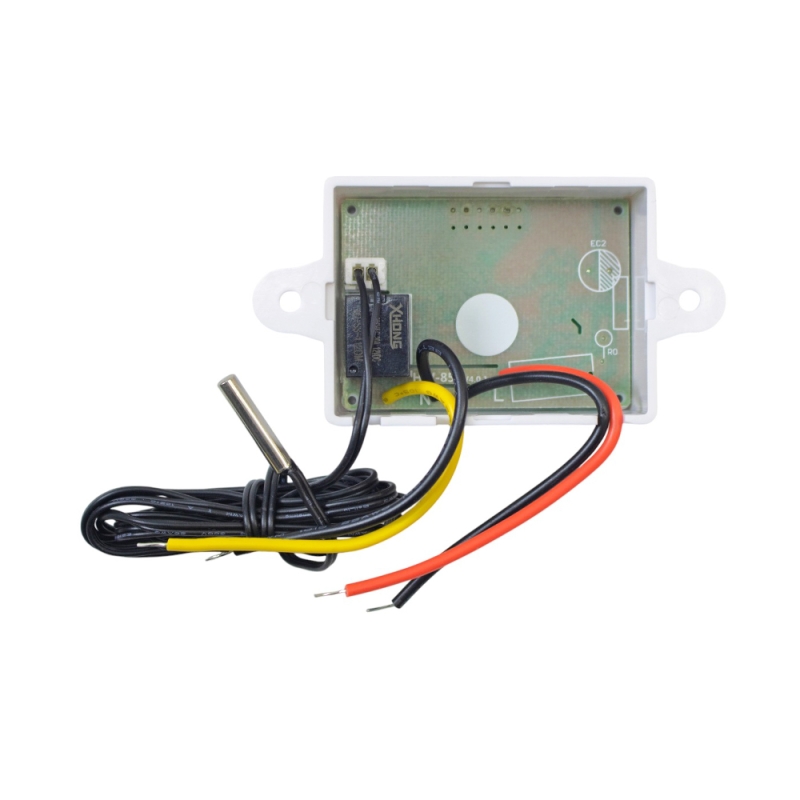

مشخصات

ولتاژ کاری 12 ولت DC و جریان خروجی رله 10A
سنسور NTC10K با سیم 1 متری

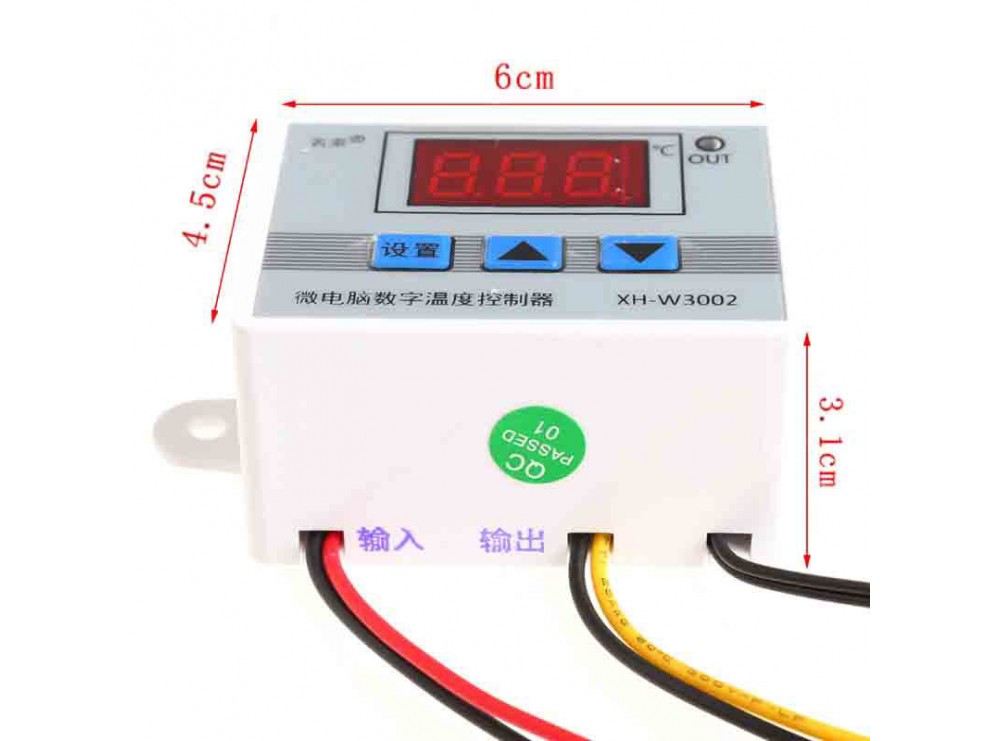

اندازه ابعاد 61x45x31mm

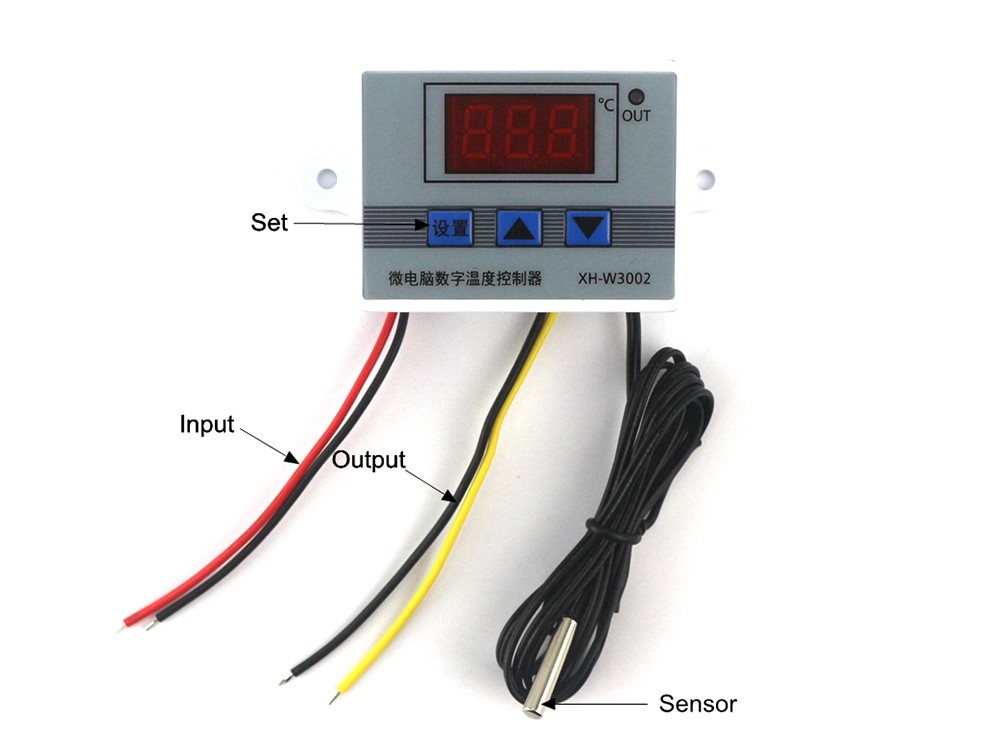

نحوه استفاده

مدهای کاری
تشخیص مد کاری در این ماژول به صورت اتوماتیک می باشد و با توجه به تعیین دمای Start و Stop صورت می گیرد. مد Heating در صورتی که دمای Start از دمای Stop کمتر باشد. مد Cooling در صورتی که دمای Stop کمتر از دمای Start باشد. مد Cooling برای کنترل یک هیتر و مد Cooling برای کنترل سیستم سرمایشی کاربرد دارد. به عنوان مثال دمای Start برابر با 10 و دمای Stopبرابر با 30 باشد مد Heating می باشد و با گذشتن دما از دمای Stop خروجی تا زمانی که به دمای Start برسد فعال می ماند.

تنظیم پارامترها
با زدن جهت بالا دمای Start و با زدن جهت پایین دمای Stop تنظیم شده نمایش داده می شود.
P0 تنظیم دمای Start
P1 تنظیم دمای حد Stop
P2 تعیین offset برای کالیبره شدن
P3 تعیین تاخیر تغییر وضعیت خروجی(دقیقه)

پیغام های نمایشگر
888: درمواقع استارت سیستم و ریست تنظیمات ماژول(با نگه داشتن کلید های جهت دار به مدت بیشتر از 3 ثانیه تنظیمات کارخانه اعمال می شود).
LLL: قطع یا خطا در داده های سنسور.
HHH: دما از حد مجاز بیشتر است.

Specification

Name: Microcomputer Temperature Controller
Model: XH-W3002
Temperature range: -50 ~ 110C
Temperature accuracy: ± 0.1C
Measuring accuracy: ± 0.2C
Input measurement: NTC 10 K L = 1 m waterproof probe
Power input: 12V
Output Power: 120W
Output Type: Direct Output
Output capacity: up to 10A
Installation height: Approx. 73mm/ 2.87inch (4mm opening)
ize: Approx. 61x 45x 31mm (2.4x 1.77x 1.22 inch)
Material: Plastic

Instructions

Two Work Mode: Heating ( start temperature is less than stop temperature), Cooling ( start temperature is above than stop temperature) Temperature Control Range: -50 to 100 degree; Input: DC 12V; Output: 10A (MAX), input/output synchronization, can meet all kinds of large power load. LED Indicator Light: Display the current output status; Digital Display Tube: Shows measuring temperature, high accuracy of temperature measuring and controlling. Three buttons for easy operation, to set start temperature, stop temperature, corrected temperature, delay start time. Made of 1.8mm super-thick ABS material, high safety, ageing resistant, sturdy and durable.
888: Power on, press the UP and DOWN buttons at the same time more than 3 seconds, restore factory setting.
LLL: In use, means sensor is fault.
HHH: In use, means the temperature is above the range.
Press the setting buton, enter the internal menu. Press the up and down to switch setting parameter.
P0: Set Start temperature
P1: set stop temperature
P2: Set temperature calibration
detect temperature + corrected temperature = actual temperature
P3: Set delay start
Press the setting button, use the up or down button to set delay time( Minutes )

Specification

Name: Microcomputer Temperature Controller
Model: XH-W3002
Temperature range: -50 ~ 110C
Temperature accuracy: ± 0.1C
Measuring accuracy: ± 0.2C
Input measurement: NTC 10 K L = 1 m waterproof probe
Power input: 12V
Output Power: 120W
Output Type: Direct Output
Output capacity: up to 10A
Installation height: Approx. 73mm/ 2.87inch (4mm opening)
ize: Approx. 61x 45x 31mm (2.4x 1.77x 1.22 inch)
Material: Plastic

Instructions

Two Work Mode: Heating ( start temperature is less than stop temperature), Cooling ( start temperature is above than stop temperature) Temperature Control Range: -50 to 100 degree; Input: DC 12V; Output: 10A (MAX), input/output synchronization, can meet all kinds of large power load. LED Indicator Light: Display the current output status; Digital Display Tube: Shows measuring temperature, high accuracy of temperature measuring and controlling. Three buttons for easy operation, to set start temperature, stop temperature, corrected temperature, delay start time. Made of 1.8mm super-thick ABS material, high safety, ageing resistant, sturdy and durable.
888: Power on, press the UP and DOWN buttons at the same time more than 3 seconds, restore factory setting.
LLL: In use, means sensor is fault.
HHH: In use, means the temperature is above the range.
Press the setting buton, enter the internal menu. Press the up and down to switch setting parameter.
P0: Set Start temperature
P1: set stop temperature
P2: Set temperature calibration
detect temperature + corrected temperature = actual temperature
P3: Set delay start
Press the setting button, use the up or down button to set delay time( Minutes )

Specification

Name: Microcomputer Temperature Controller
Model: XH-W3002
Temperature range: -50 ~ 110C
Temperature accuracy: ± 0.1C
Measuring accuracy: ± 0.2C
Input measurement: NTC 10 K L = 1 m waterproof probe
Power input: 12V
Output Power: 120W
Output Type: Direct Output
Output capacity: up to 10A
Installation height: Approx. 73mm/ 2.87inch (4mm opening)
ize: Approx. 61x 45x 31mm (2.4x 1.77x 1.22 inch)
Material: Plastic

Instructions

Two Work Mode: Heating ( start temperature is less than stop temperature), Cooling ( start temperature is above than stop temperature) Temperature Control Range: -50 to 100 degree; Input: DC 12V; Output: 10A (MAX), input/output synchronization, can meet all kinds of large power load. LED Indicator Light: Display the current output status; Digital Display Tube: Shows measuring temperature, high accuracy of temperature measuring and controlling. Three buttons for easy operation, to set start temperature, stop temperature, corrected temperature, delay start time. Made of 1.8mm super-thick ABS material, high safety, ageing resistant, sturdy and durable.
888: Power on, press the UP and DOWN buttons at the same time more than 3 seconds, restore factory setting.
LLL: In use, means sensor is fault.
HHH: In use, means the temperature is above the range.
Press the setting buton, enter the internal menu. Press the up and down to switch setting parameter.
P0: Set Start temperature
P1: set stop temperature
P2: Set temperature calibration
detect temperature + corrected temperature = actual temperature
P3: Set delay start
Press the setting button, use the up or down button to set delay time( Minutes )
