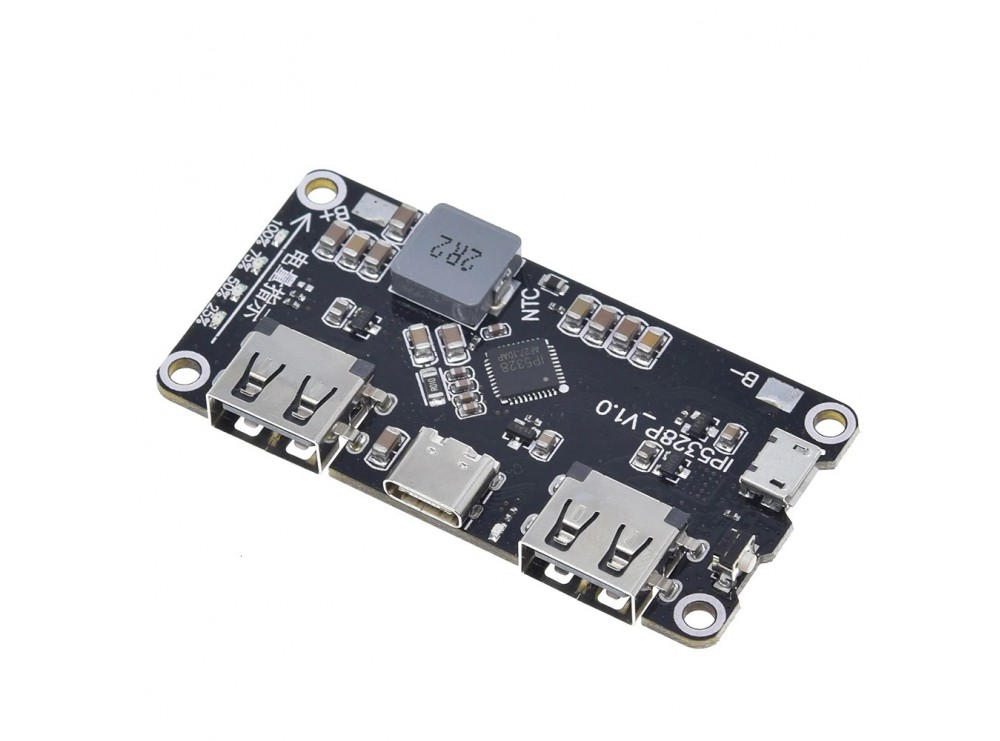

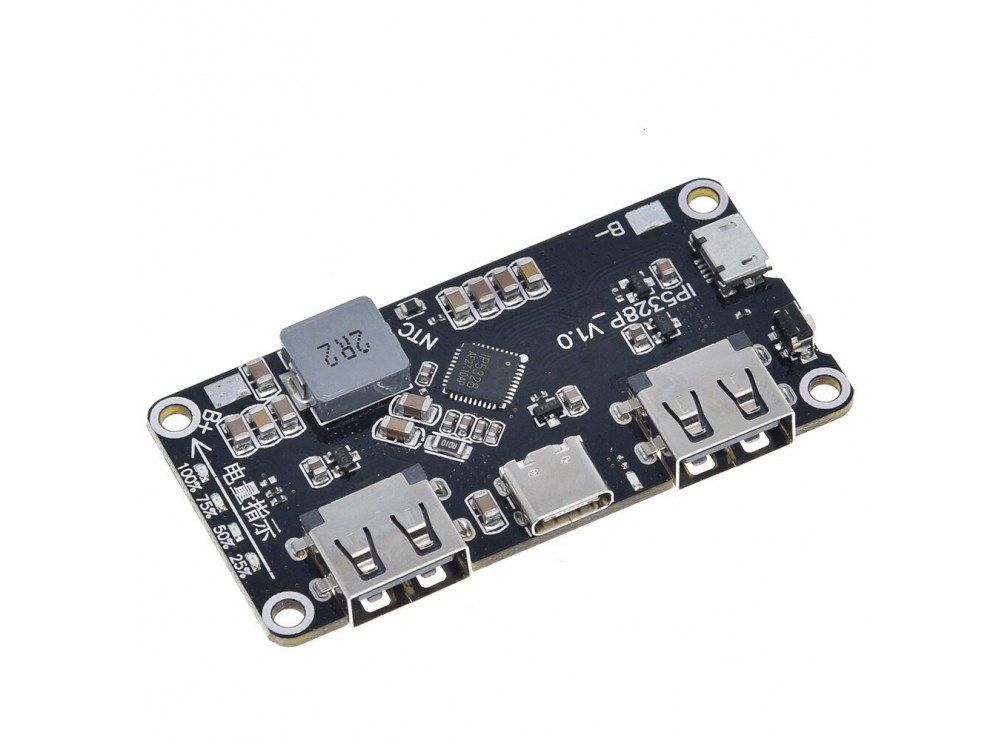

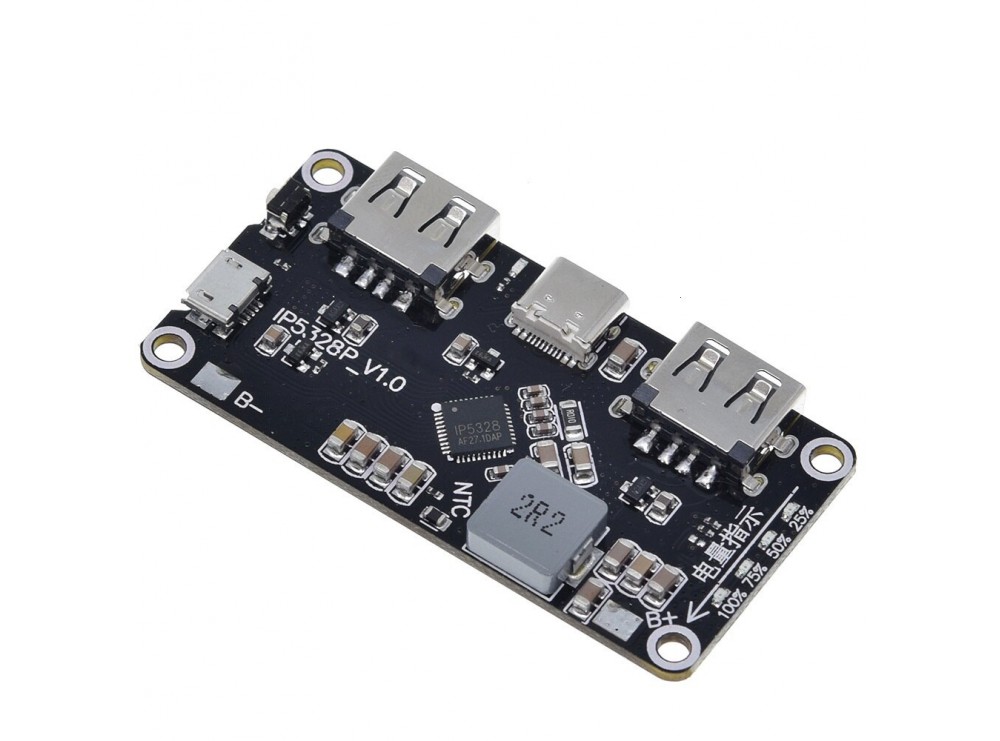

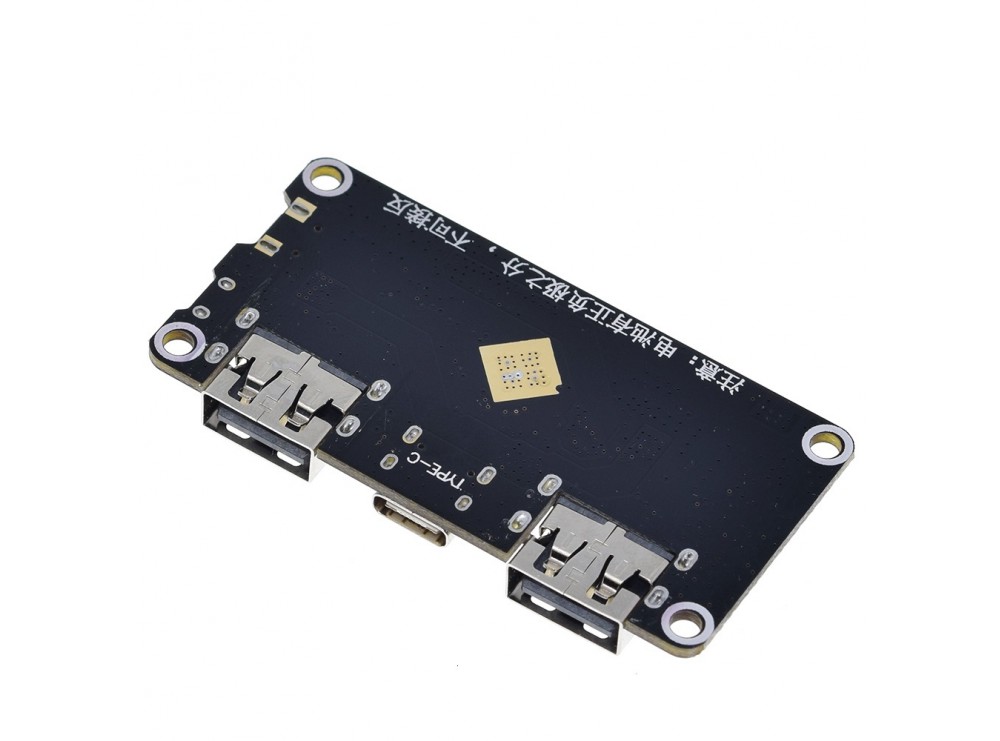

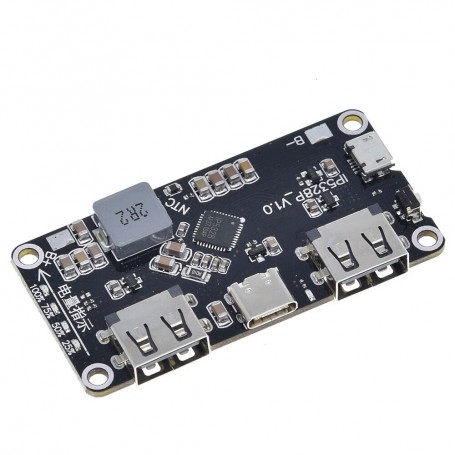

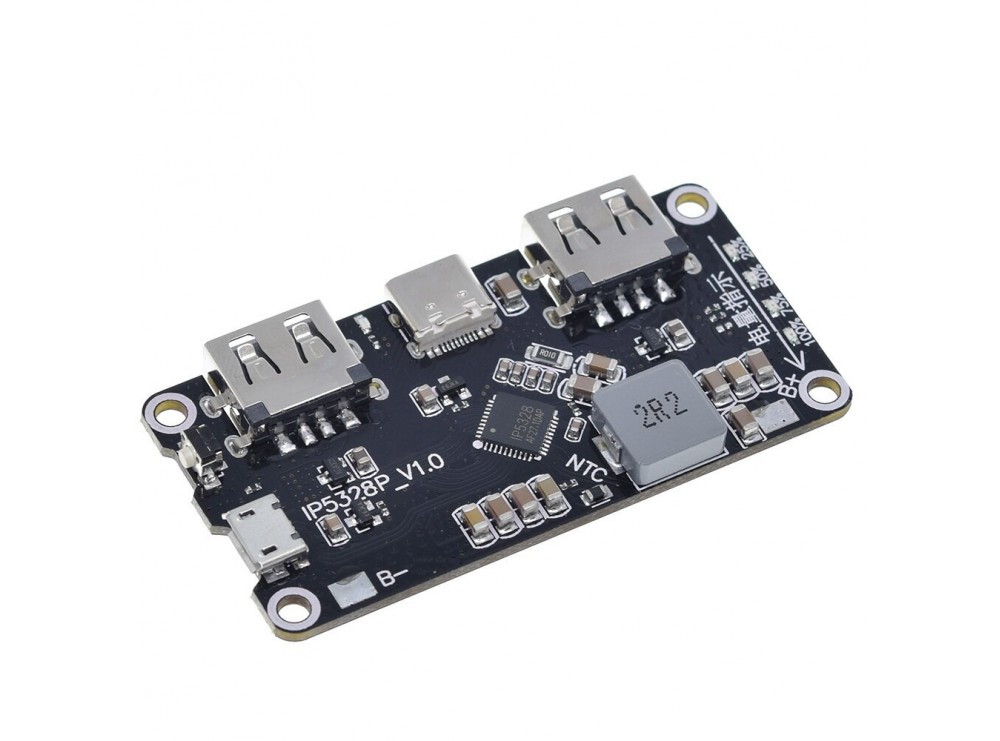

ماژول شارژر پیشرفته Fast Charge دارای پورت Type-C و دو خروجی USB

تنها با اتصال یک منبع ولتاژ 5 ولتی با درگاه میکرو USB به ورودی شارژر می تواند باتری متصل به خروجی را تا 5V شارژ نماید. این ماژول بطور کلی برای منابع تغذیه قابل حمل که ازباتری های lithium 18650 استفاده می کنند مناسب است. برای استفاده از این ماژول نیاز به فشردن دکمه ی آن ندارید، با اتصال به موبایل به طور خودکار خروجی خواهیم داشت. جریان مناسب برای شارژ باتری موبایل به طور خودکار تنظیم میشود. این ماژول برای توان کمتر از 0.5 وات و بالاتر از 18 وات مناسب نیست. این ماژول دارای مدار محافظ نمی باشد بنابر این با توجه به ولتاژ 3 تا 4.2 ولتی نباید باتری های چندتایی سری با یکدیگر موازی شوند. باتری باید دارای ظرفیت 4A حدودی برای دشارژ باشد.

مشخصات

• ورودی : 5V-1A
• رابط ورودی: پورت مادگی میکرو USB
•  رابط خروجی: 2× پورت استاندارد مادگی USB A
• پورت Type-C به عنوان ورودی و خروجی fast
• خروجی فست شارژ با پروتکل های QC3.0, FCP, AFC, MTK, SFCP
• باتری های مجاز برای ماژول: باتری های لیتیومی 18650 با سر فلت یا باتری لیتیوم پلیمری حداکثر 5 باتری موازی
• مدار محافظ پلاریته معکوس : ندارد (اتصالات مثبت و منفی با دقت انجام شود.)
• مدار محافظ overcharge و over discharge برای باتری لیتیومی دارد.
• مدار محافظ خروجی over current و اتصال کوتاه دارد .
• ابعاد برد : 68x33x12mm

Introduction

Battery type: 3.7V battery (collection or 18650 lithium battery) single-section parallel, capacity is not limited, the larger the capacity, the longer the charging and discharging time.
Press the key: The button lasts longer than 60ms but less than 2s, which means short press. A short press will turn on the power indicator and boost output. Pressing 10s for a long time resets the whole system. The button action less than 30ms will not respond.
Mobile phone insertion automatic detection function: IP5328P automatically detects the insertion of the mobile phone, instantly wakes up from the standby state, turns on the boost 5V to charge the mobile phone, saves the button operation, and supports the no-button solution.
The built-in soft-start function prevents the inrush current caused by an excessive startup, causing faults, integrated output overcurrent, short circuit, overvoltage, over temperature and other protection functions to ensure stable and reliable operation of the system.
Fast charge indication: input and output high voltage fast charge indicator.
Use the set core IP5328P mobile power solutions, four layers of heavy gold plate, optimize the layout, support A variety of quick charge agreement, two-way 18 w quick charge, can support A total of four charging interface: two USB – A output interface, A USB – C interface, A Micro USB interface, four interface support quick charge, including two USB port A support QC3.0, FCP, AFC, MTK, SFCP quick charge output, the power can reach 18 w; Support apple, Samsung, BC1.2 protocol. USB-C port supports USB PD two-way fast charge, and compatible with FCP, AFC, SFCP fast charge input and QC3.0, FCP, AFC, MTK, SFCP fast charge output. MicroUSB supports FCP, AFC, SFCP fast charging input.

Specification

Support 5V~12V wide voltage range output, load capacity is 5V-3.1A, 7V-2.4A, 9V-2.0A, 12V-1.5A. Switching frequency 375KHz

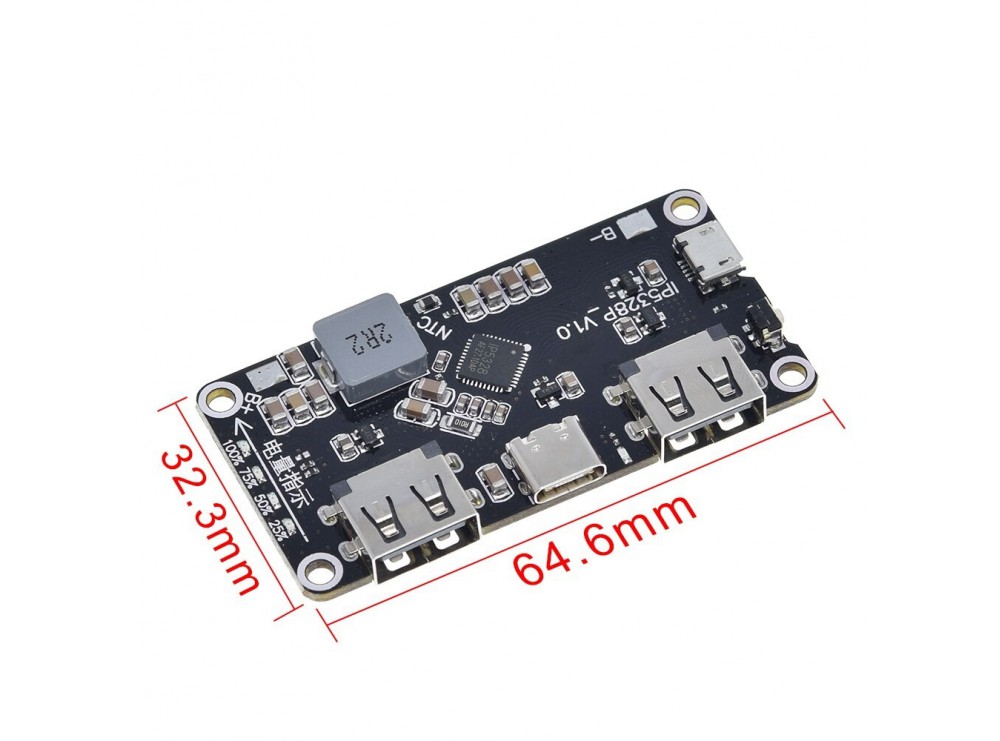

Size: 65×32.5mm/2.56×1.26in
Conversion efficiency: 95%
Output interface：Uba + Uba + Type c supports fast load output
Input interface：micro + Type c supports fast load input
The IP5328P automatically adjusts the charging current to accommodate adapters with different load capacities.
The IP5328P does not support the same charging and discharging. In the charging state, the output discharge port is turned off to prevent the input high voltage from damaging the charged device.
The safety should be added to the protection board, the motherboard has positive and negative points, the battery is not available reversing, the anti-burning motherboard is at your own risk!

Instruction

Low power lock and activation
When IP5328P is connected to the battery for the first time, no matter what the battery voltage is, the chip is in a locked state and the lowest power light will flash 4
The second time to prompt; In the non-charging state, if the battery voltage is too low to trigger a low power shutdown, IP5328P will also enter the locked state.
In the locked state, in order to reduce the static power consumption, IP5328P does not have the function of inserting detection into the phone, nor can it be activated through the key. this
When, the button action cannot activate the boost output, but the lowest power light will flash 4 times to prompt.
In the locked state, the function of the chip can only be activated by entering the charging state.
charging
IP5328P has a constant current and constant voltage lithium battery charging management system supporting a synchronous switch structure. It can automatically match different charging charges
Pressure specifications.
When the battery voltage is less than 3V, 250mA trickle charging is adopted. When the battery voltage is greater than 3V, it enters the input constant current charging and the battery terminal is charged to the maximum
Current 5.0a; When the battery voltage is close to the set battery voltage, it enters the constant voltage charging. When the charging current of the battery end is less than 300mA or so and the battery is charged
When the pool voltage approaches constant voltage, the charging stops. After charging, if the battery voltage is lower than 4.1v, restart the battery for charging.
IP5328P adopts switching charging technology and switching frequency is 500kHz. Ordinary 5V input charging, the maximum input power 10W; Quick charge input
When charging, the maximum input power is 18W. The maximum charging current at the battery end is up to 5.0a, the charging efficiency is up to 94%, and the charging time can be shortened by 3/4.
IP5328P will automatically adjust the charging current to adapt to the different load capacity of the adapter.
IP5328P does not support the same charging and discharging. In the charging state, the output discharge port will be closed to prevent the input high voltage from damaging the charged device.
booster
IP5328P is integrated with a synchronous switch converter system that supports high voltage output. It supports the output of 5V~12V wide voltage range, negative
The carrying capacity is 5v-3.1a, 7v-2.4a, 9v-2.0a and 12v-1.5a respectively. Switching frequency: 375KHz. Built-in soft start
Function to prevent fault caused by excessive shock current at startup, integrated output overcurrent, short circuit, overvoltage, overtemperature, and other protection functions,
Ensure the stability and reliability of the system.
The output current of the booster system can be automatically adjusted with the temperature to ensure that the IC temperature is below the set temperature.
